rejilla de acero precios
USD $3.5 - $8.7
/ Square Meter
215 Square Meters(Min.Order)
- 10000000 Square Mile / Square Miles per Month
- Tianjin Xingang
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | GUANDA | |
| Model Number | GD2 | Material | Steel |
Product Description
Product Description

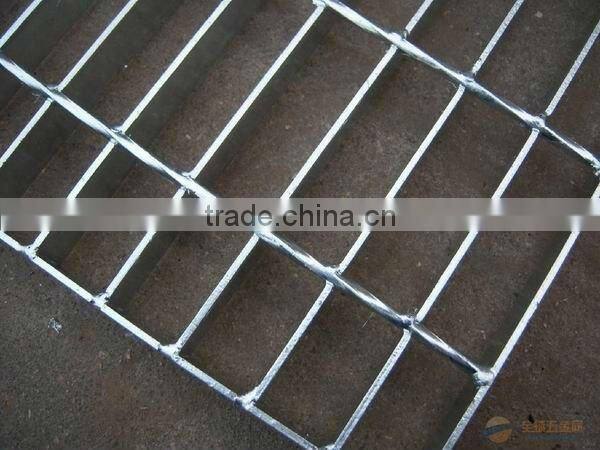

Flooring galvanized steel grating plate/steel grid plank
Features: manufactured according to customers' requirements
For example:
1) Bearing bar pitches may be 12.5, 15 to 30, 40, 60, 80 and 90mm; of which 30
and 40mm are recommended
2) Cross bar pitch may be 30, 38, 50, 76 and 100mm; of which 50 and 100mm are
recommended
3) Advantages of steel grid planks: light weight, strong intensity, big load capacity,
transmission and aeration, anti-skid and secure, wears well, non-sagging,
non-dirt, and easy to install
4) Hot galvanizing standard: China GB/T13912-92
5) Wrapping: wrapping is as requested by customers, or depends on the wrapping
methods used before
Standard Description:
| No | Item | Description |
| 1 | Bearing bar | 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm |
| 2 | Bear bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc. |
| 3 | Cross bar pitch | 38,50,76,100,101.6mm |
| 4 | Material | Q235,A36,SS304 |
| 5 | Surface treatment | Black, hot dipped galvanising, paint |
| 6 | Standard | China: YB/T 4001.1-2007 |
| USA: ANSI/NAAMM(MBG531-88) | ||
| UK: BS4592-1987 | ||
| Australia: AS1657-1985 |
