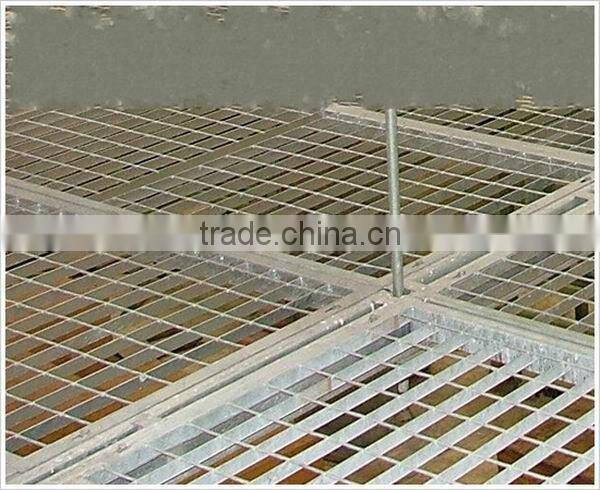

Factory Price Galvanized Steel Grating Plate, Floor Grating, Walkway Grating

FOB Price

US$ 3 - 8 / Square Meter

100 Square Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	GUANDA
Model Number	GD2		Material	Steel

galvanized Steel Grating Plate/floor grating/walkway grating

→Size without cutting :

1.5m*6m ( Standard )

→Material:

Mild steel ,stainless steel with 3mm & 5mm thickness

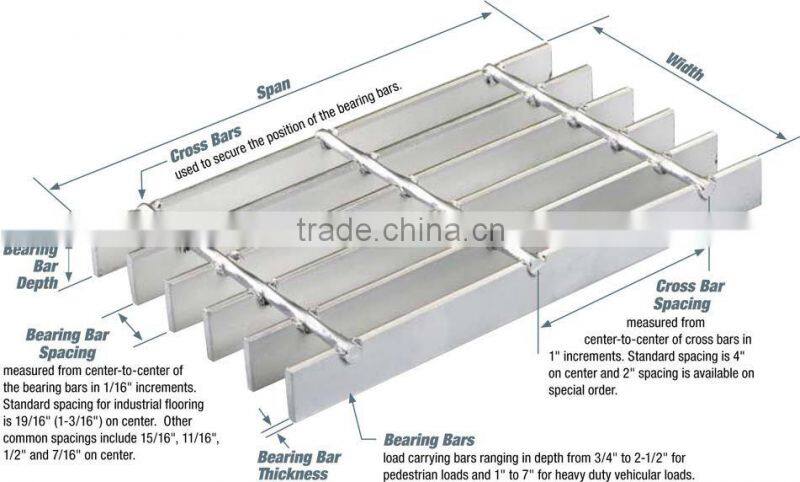

→Shape of bearing bar :

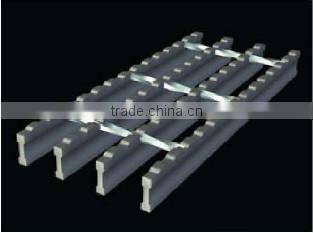

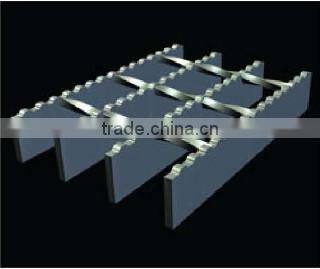

Bearing bar: Plain type, Plain I type, Serrated type, Serrated I type;

Plain type

Plain I type

Serrated type

Serrated I type

→Shape of crossing bar :

Cross bar: Round cross bar, Square twisted cross bar.

round cross bar square twisted cross bar

square twisted cross bars are mostly used. and round cross bars are normaly used for fine-mesh steel grating.

→Sign of steel grating :

F-Flat steel bar , S-Serrated flat , I-I form flat bar

Series	Bearing Bar Spacing	Cross Bar Spacing	*Bearing Bar Specification ( Width Thickness)**
	( mm )	( mm )	*325 ( mm )**	*405 ( mm )**	*455 ( mm )**	*505 ( mm )**	*555 ( mm )**	*605 ( mm )**
1	30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
		50	G325/30/50	G405/30/50	G4555/30/50	G505/30/50	G555/30/50	G605/30/50
2	40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
		50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
3	60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50
