Water Machine Bottle Making Machine 20000bph
- 20 Set / Sets per Month
- Huangpu
- T/T
You May Like
-
Rotary PET Bottle Blower Uses Stretch Molding (14XSD)
-
Automatic Plastic Bottle Blow Molding Machine (14XS)
-
Rotary Water Bottle Blowing Machine Pet Blower (12XS)
-
Beverage Bottle Strecth Molding Machine (12XQD)
-
Rotary Low Speed Blow Molding Machine (06XSD)
-
PET Bottle Blowing Machine Plastic Molding Machine 3 in 1 Machine (10XSD)
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PET | Blow Moulding Type | Stretch Blow Moulding | |
| Automatic | Yes | Place of Origin | Guangdong, China | |
| Brand Name | VANTA | Model Number | DSL-14XZ | |
| Voltage | 380V | Power(W) | 190KW | |
| Dimension(L*W*H) | 4200*2700*3100 | Weight | 12T | |
| Certification | CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. Description:

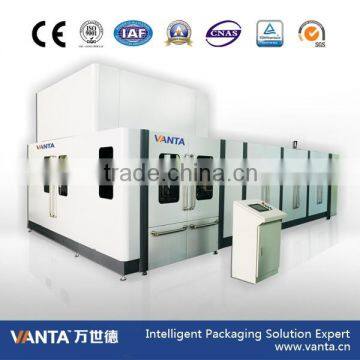

The DSL series of rotary blow molding machine is developed by Vanta engineer under the world's most advanced technology for bottle making. The bottle making machine ensures high performances in the blow-molding of PET bottles by using high pressure air.
Thanks to high-tech components, minimized maintenance and operational costs and excellent quality/price ratio, the DSL series bottle blowing machine has already reached industry leading level in auto preform arrangement, heating and bottle stretching.
2. Equipment Data
Model Number
| DSL-14XZ | ||||
PRODUCTION DATA | Mould cavities | N | 14 | ||
Max. Height | mm | 280 | |||
Max. diameter | mm | 32 | |||
Max. capacity | ml | 750 | |||
Max. output for 500ml , bottle (*) | pcs/h | 22000 | |||
Rate of finished product(*) | % | ≥99.5 | |||
DIMENSIONS | HOST | Length *Width*Height | mm | 4200*2700*3100 | |
HEATING FURNACE | Length *Width*Height | mm | 5500*1210*2160 | ||
| Total power installed | kW | 190 | ||
COOLING /HEATING SYSTEM | BASE MOULD | Water inlet temperature (**) | ºC | 8~10 | |
Power installed (**) | kW | 4 | |||
BODY MOULD | Water inlet temperature | ºC | 10~15 | ||
Power installed (**) | kW | 10 | |||
3. Advantages:
3.1 Reasonable structure, cover small area
3.2 High degree of automation and intelligence
3.3 Good, stable product quality
3.4 High productivity
3.5 Good visibility, maintainability, and security
3.6 High cleanliness, without pollution
3.7 Low noise machine
3.8 Low cost of production
3.9 Low failure rate
4. Products:
