Gable Top Carton Filling Machine Bottle Filling Machine Juice Filling Machine (HD-GZ 2000)

http://youtu.be/gSS-4Z_Yro8

1.   Capacity: 250—1000ml ( can be filled by one machine)

2.   Output: 2000 pcs/hour, with capping 1700 pcs/hour

3.   Power: 15.6KW (3Φ,380V,50HZ)

4.   Air consumption: 570L/min (6kg/ cm²)

5.   Cooling water consumption: Cooling water :1℃, 22.8L/min(2.8kg/ cm²)

6.   Measurement: 2600(L)*2000(W)*2100(H)mm

7.   Weight: 2500kg

8. Basic configuration

9. Working process:

(1) Put cardboard into carton holder (manually) → Bottom pre-forming → Bottom heating and sealing → Ultrasonic capping (Optional) → Top pre-forming→ Filling → Top heating and sealing → Date printing → Finished product

(2)The whole process is controlled by PLC, and only need one person to operate.

10. Features:

(1) PLC control, only need one worker.

(2) Apply touch screen which shows relevant information for operator to make the operation easy.

(3) Automatically record the working status which can be long-term saved.

(4) Automatic lubrication.

(5) Automatically failure alarm, diagnosing, and solution indicating.

(6) The filling capacity can be adjusted at will.

(7) The capping function is optional.

(8) Can be installed with remote debugging system, which can solve problems for long distance customers.

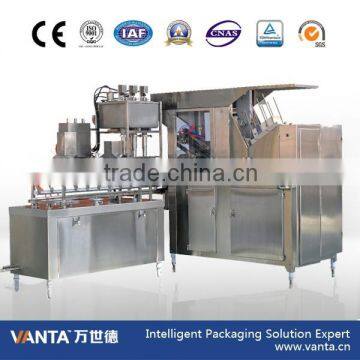

11. Photo of machine:

(1)  Touch screen and carton infeed

(2)carton bottom forming section

(3)Beverage filling section

(4)conveyor cap and welding cap system:

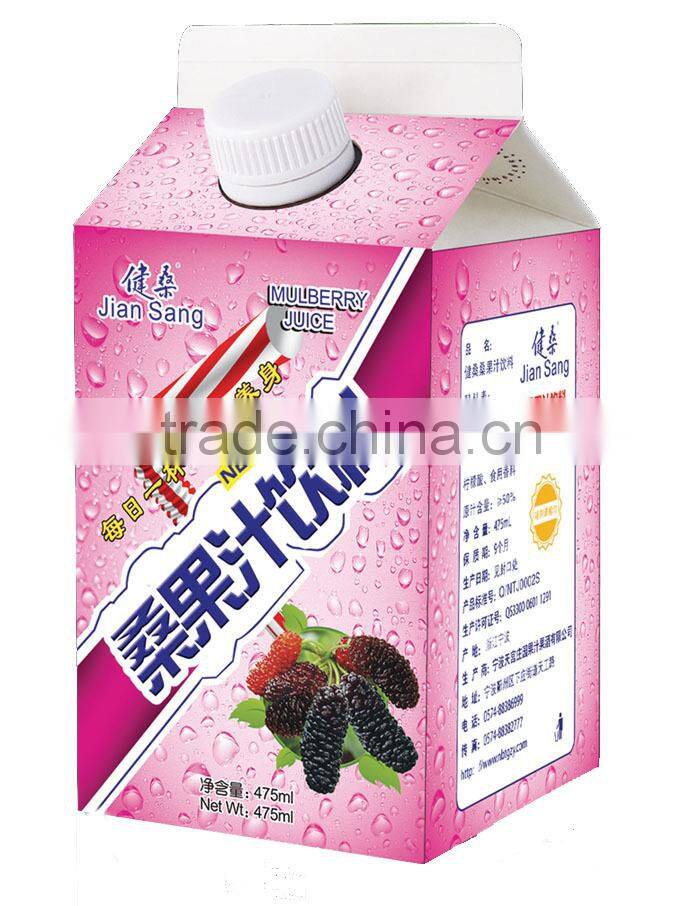

12. Finsihed Product:
