Home > Products > Low-temperature Cooling Liquid Circulating Pump > DLSB-50L/-80 Degree Low-temperature Cooling Liquid Circulating Pump

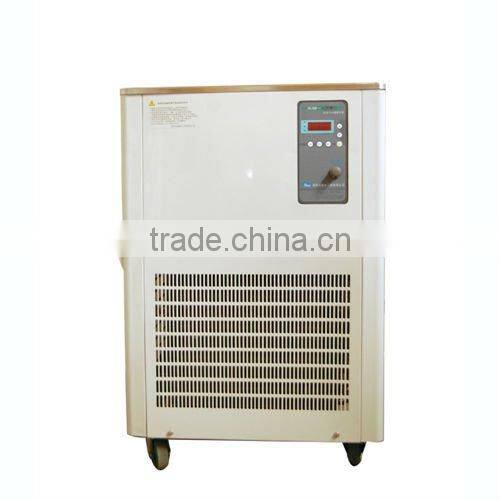

DLSB-50L/-80 Degree Low-temperature Cooling Liquid Circulating Pump
- Shanghai Qingdao Tianjin etc.
- Credit Card
You May Like
Product Details
| Brand Name | zhengzhou great wall | Model Number | DLSB series | |
| Place of Origin | Henan, China |
Product Description
Specifications
DLSB-50L/-80 degree low-temp cooling liquid circulating pump1. -80~Room temp
2.50L Bath volume
3.300W cooling capacity
DLSB-50L/-80 low-temperature cooling liquid circulating pump
I.Application:
Adoption of low-temperature liquid circulation equipment of compression refrigeration methods can cool the tube, the reaction bottles directly and so on to have chemical reaction under low-temperature and store chemical and biological products under low-temperature. Besides, it can also be combined with Rotary Evaporator, Vacuum Freeze-drying Box, Multi-purpose Circulating Water Vacuum Pump.
II. Features:
•Large-capacity open bath combined with outside loop can not only be used as freezing tanks, but also provide cooling fluid outside.
•Digital setting and display of temperature, easy to operate.
•Refrigeration compressors and other key parts adopt products with famous brands of the United States, Germany, and France and have high reliability and efficiency.
•Circulating system adapts ANSI304, 316 and macromole anti corrosion substance, which can prevent rust, corrosion, and low temperature liquid pollution.
III. technical data:
Model | DLSB-20/80 | DLSB-50/80 | DLSB-100/80 | |
Temperature range(°C) | -80~Room temp | -80~Room temp | -80~-40 | |
Temperature stability(°C) | ±2 | |||
Cooling capacity (W) | -40°C | 510 | 1150 | 2400 |
-60°C | 210 | 760 | 1500 | |
-80°C | 80 | 300 | 600 | |
Flow(L/min) | 12 | 30 | 30 | |
Lift(m) | 5~7 | 10~12 | ||
Bath volume(L) | 20 | 50 | 100 | |
Bath opening(mm) | 280×300 | 400×235 | 400×400 | |
Ambient temperature(°C) | 5~25 | |||
Power Supply(V/Hz) | 220/50 | 380/50 | ||
Overall Power(W) | 2400 | 4800 | 9200 | |
MaterialsOf Machine Casing | SPCC steel with powder coating | |||
Dimensions(mm) | 905L×750W×1100H | 1010L×785W×1100H | 850L×1060W×1280H | |
Weight(kg) | 150 | 350 | 400 | |

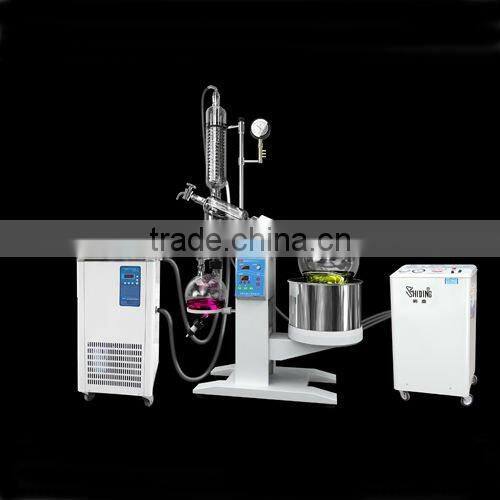

recommended total system:
low-temp cooling liquid circulating pump + rotary evaporator + water circulating multi-purpose vacuum pump
