Latest Design DLSB Series Low Temperature Cooling Liquid Circulating Pump
- Shanghai/Tianjin/Qingdao/
- T/T Credit Card
You May Like
-
Latest Design DLSB Series Temperature Control Circulation Pump
-
DLSB-5L/-20 Laboratory Equipment Low Temperature Circulator Pump
-
DLSB-5L/-20 Low Temperature Circulator Pump
-
DLSB-10L/-20 Low Temperature Circulator Pump
-
5L Minus 20 Degree Low Temp Cooling Liquid Circulating Pump Refrigeration Circulator DLSB-5/20
-
Great Wall DLSB-5/20 5L Minus 20 Celsius Degree Refrigeration Circulator
Product Details
| Type | Plate Freezer | Place of Origin | Henan, China | |
| Brand Name | Zhengzhou Greatwall | Model Number | DLSB-5L/-10 |
Product Description
Specifications
Low temperature cooling liquid circulating pumpFamous brand compressor
AdoptSUS304 306 macromolecule anticorrosion substance
Latest design DLSB series Low temperature cooling liquid circulating pump
Ⅰ: Technical data of DLSB-5L/-10 low temperature circulating pump :
Model | DLSB-5/10 | DLSB-5/20 | DLSB-10/20 | |
Temperature range(°C) | -10~Room temp | -20~Room temp | ||
Temperature stability(°C) | ±2 | |||
Cooling capacity (W) | 10°C | 1250 | 1150 | 1700 |
0°C | 970 | 880 | 1200 | |
-10°C | 650 | 600 | 700 | |
-20°C | - | 320 | 370 | |
Flow(L/min) | 12 | |||
Lift(m) | 5~7 | |||
Bath volume(L) | 5 | 5 | 10 | |
Bath opening(mm) | Φ 210×180 | Φ 210×180 | Φ 210×250 | |
Ambient temperature(°C) | 5~25 | |||
Power Supply(V/Hz) | 220/50 | |||
Overall Power(W) | 600 | 600 | 1100 | |
Materials Of Machine Casing | SPCC steel with powder coating | |||
Dimensions(mm) | 465L×325W×730H | 465L×325W×730H | 510L×365W×800H | |
Weight(kg) | 41 | 41 | 50 | |
Ⅱ Brief introduction:
Adoption of low temperature liquid circulation equipment of compression refrigeration methods can cool the tube, the reaction bottles directly and so on to have chemical reaction under low-temperature and store chemical and biological products under low
temperature. Besides, it can also be combined with Rotary Evaporator, Vacuum Freeze-drying Box, Multi-purpose Circulating Water Vacuum Pump.
Ⅲ Characteristics of uses:
♦ To meet the temperature and water for cooling water,the double of energy ,save water,prevent pollution.
♦ Native set the cooling of power is reasonable,fully and save space.
♦ All actions are in the microcomputer intelligent control apparatus on punches touch soft keys,simple,intuitive.
♦ Easy to operate,and it can continue to work.
♦Large capacity open bath combined with outside loop can not only be used as freezing tanks, but also provide cooling fluid outside.
♦ Digital setting and display of temperature, easy to operate.
♦Refrigeration compressors and other key parts adopt products with famous brands of the United States, Germany, and France and have high reliability and efficiency.
♦Circulating system adopts SUS 304, 316 and macromolecule anti corrosion substance, which can prevent rust, corrosion, and low temperature liquid pollution.

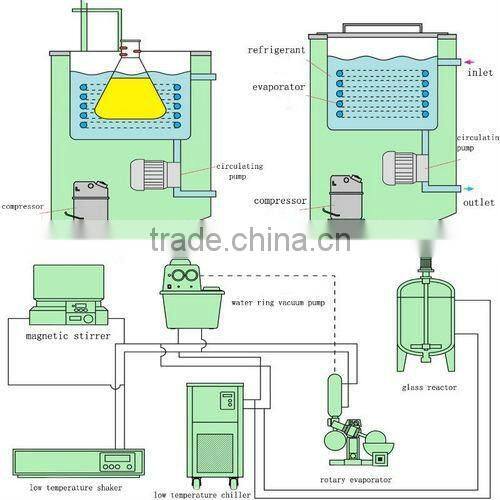

IV :Function pictures about the DLSB low temperature circulator pump:
(The temperature is lower and the cooling capacity is lower,please according to the need of temperature range and calorific value of experiment to choose products model,then it can achieve the best experiment results.)

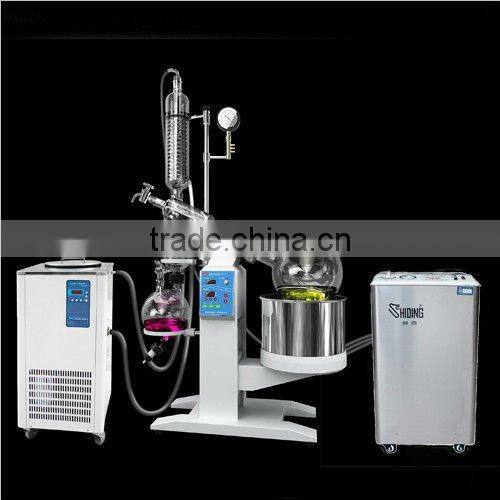

V :Matching equipment :(DLSB-Series +R-1020 Rotary evaporator+SHB-B95A vacuum pump)

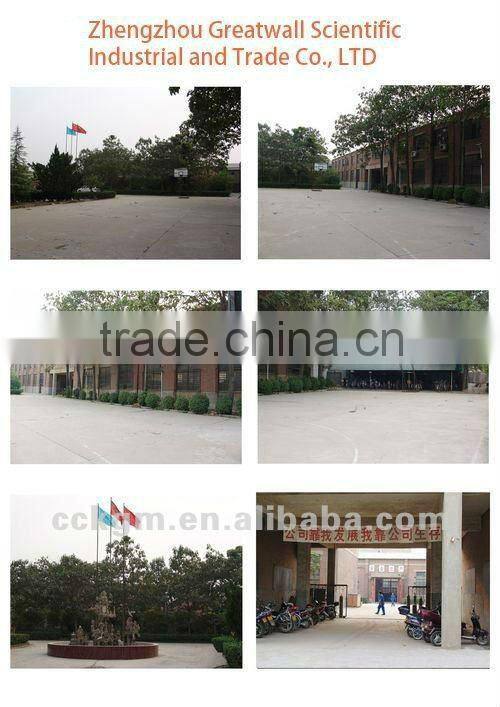

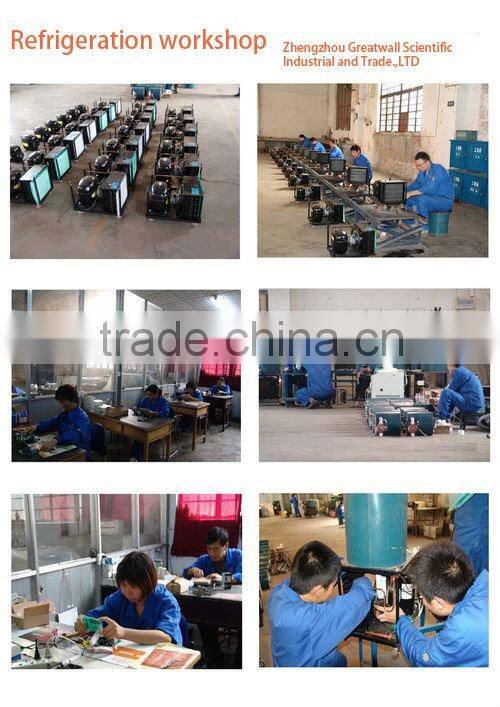

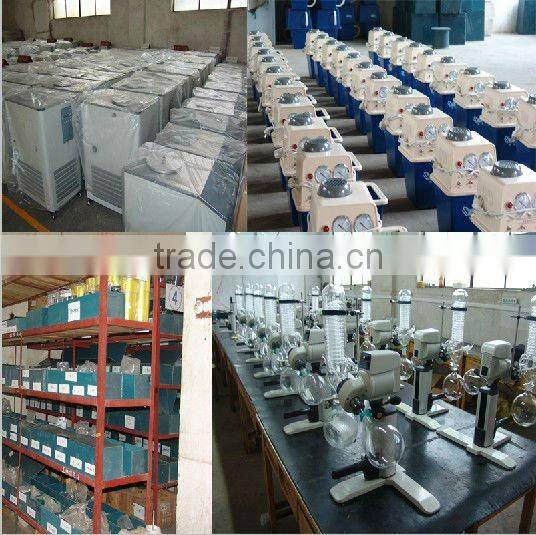

VI:Workshop and company pictures
