Laboratory Low Temperature Circulator Cooling Bath DLSB
- Shanghai Tianjin Qingdao etc.
- T/T Credit Card
You May Like
-
-80 Degree C Digital Display Low Temperature Water Bath Refrigeration Pump
-
DLSB-20L/-30 C Low-temperature Cooling Liquid Circulating Pump Low-temp Pump
-
DLSB-50L/-80 Degree Low-temperature Cooling Liquid Circulating Pump
-
Low-temperature Cooling Liquid Circulating Pump
-
Best Selling CT-2000H Cold Trap
-
Good CT-5000H Cold Trap
Product Details
| Brand Name | zhengzhou great wall | Model Number | DLSB series | |
| Place of Origin | Henan, China |
Product Description
Specifications
laboratory low temperature circulator cooling bath DLSB1.ISO9001:2008
2.digital display
3.PID control
4.volume 5-100L
laboratory low temperature circulator cooling bath DLSB
I.Application of low temperature cooling liquid circulating pump:
Adoption of low-temperature liquid circulation equipment of compression refrigeration methods can cool the tube, the reaction bottles directly and so on to have chemical reaction under low-temperature and store chemical and biological products under low-temperature. Besides, it can also be combined with Rotary Evaporator, Vacuum Freeze-drying Box, Multi-purpose Circulating Water Vacuum Pump.
II. Features of low temperature cooling liquid circulating pump:
♦Large-capacity open bath combined with outside loop can not only be used as freezing tanks, but also provide cooling fluid outside.
♦Digital setting and display of temperature, easy to operate.
♦Refrigeration compressors and other key parts adopt products with famous brands of the United States, Germany, and France and have high reliability and efficiency.
♦Circulating system adapts ANSI304, 316 and macromole anti corrosion substance, which can prevent rust, corrosion, and low temperature liquid pollution.
III. Technical data:
Model | DLSB-5/10 | DLSB-5/20 | DLSB-10/20 | |
Temperature range(°C) | -10~Room temp | -20~Room temp | ||
Temperature stability(°C) | ±2 | |||
Cooling capacity (W) | 10°C | 1250 | 1150 | 1700 |
0°C | 970 | 880 | 1200 | |
-10°C | 650 | 600 | 700 | |
-20°C | - | 320 | 370 | |
Flow(L/min) | 12 | |||
Lift(m) | 5~7 | |||
Bath volume(L) | 5 | 5 | 10 | |
Bath opening(mm) | Φ200×180 | Φ200×180 | Φ210×250 | |
Ambient temperature(°C) | 5~25 | |||
Power Supply(V/Hz) | 220/50 | |||
Overall Power(W) | 600 | 600 | 1100 | |
MaterialsOf Machine Casing | SPCC steel with powder coating | |||
Dimensions(mm) | 465L×325W×730H | 465L×325W×730H | 510L×365W×800H | |
Weight(kg) | 41 | 41 | 50 | |

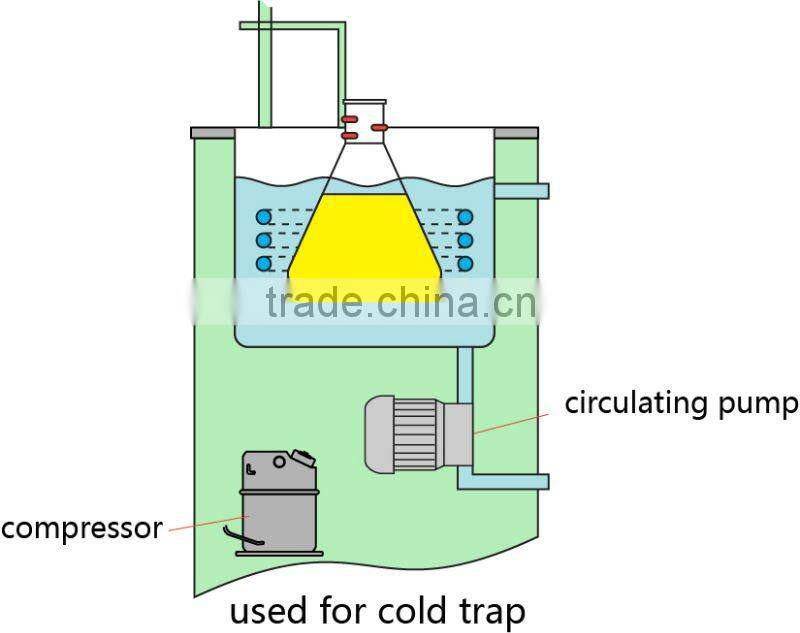

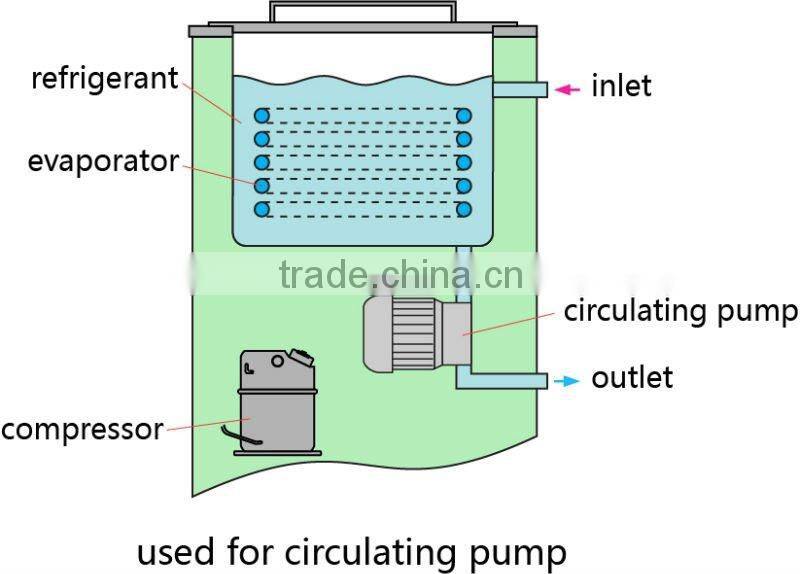

IV. Structural picture:

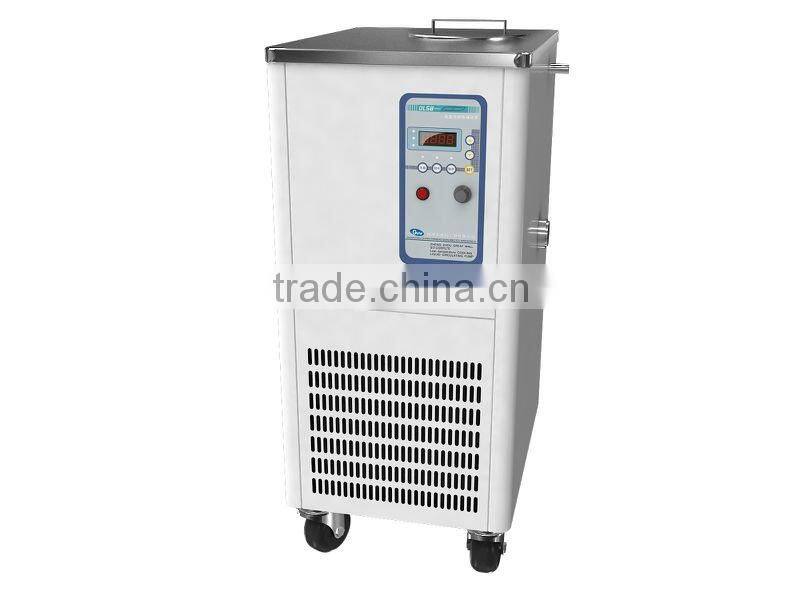

V. Pictures of DLSB-5/20 and DLSB-10/20:
DLSB-5/20 (5L, -20°C)
DLSB-10/20 (10L, -20°C)
