Zhejiang Huzhou SCVE Machine & Motor Co., Ltd.: Huzhou, Zhejiang, China; Main products: Tubular Motor, Remote Control System, Central Motor Only Export

Home > Products > SF92 Series > Tubular motor & 92mm tubular motor & roller shutter motor & ac tubular motor

Tubular motor & 92mm tubular motor & roller shutter motor & ac tubular motor

FOB Price

USD $100 - $132 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

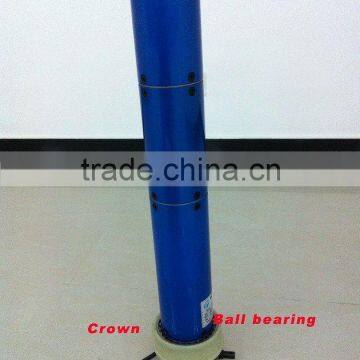

92mm tubular motor
1:Ball bearing limite adjust
2:Limit switch and external receiver
3:230V/50Hz
4:Crown:97mm

92mm tubular motor & ac tubular motor,roller shutter motor

•Equipped with ball bearing to adjust the limit

•Excellent appearence with metal dreive head and crown

•Precise limit switch ,repeat limiting precise degree

•With breaking, more reliable

•Can be radio control by adding external radio receiver

Detail Version

92mm Diameter Tubular Motor specification
	Model	(Nm)	(Rpm)	(V)	(Hz)	(W)	(A)	(Kg)
1	SF92-N-140M	140	12	230	50	580	2.6	13.5
2	SF92-N-180M	180	12	230	50	626	2.8	13.5
3	SF92-N-230M	230	12	230	50	830	3.6	13.5
4	SF92-N-250M	250	8	230	50	850	3.7	14.6
5	SF92-N-280M	280	8	230	50	860	3.8	14.6
6	SF92-N-300M	300	8	230	50	880	3.8	14.6
7	SF92-N-330M	330	8	230	50	910	4.0	14.6

Picture part version

We provide 5-year warranty

Certificate:CE/CCC/TUV/ROHS/UL

Delivery time:25-30 days

Sample time:5-7 days

Payment:T/T or L/C

If you need to know more information about the quality and price that you can contact to us!
