Lift 400kg Tube Motor
Negotiable
/ Set
300 Sets(Min. Order)
- Shanghai
- T/T
You May Like
-
92mm Roller Shutter& Door Motor
-
92mm Tube Motors for Roller Shutter Doors
-
Tubular Motor
-
SCVE Hot Sale Tubular Motor Rolling Shutter Motor
-
Tubular Motor & 330Nm Tubular Motor & 92mm Tubular Motor
-
Tubular Motor /92mm Tubualr Motor for Rolling Shutter/tubular Motor for Automatic Door/ 92mm Tubualr Motor With Manually
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SCVE | |
| Model Number | SF92S |
Product Description
Specifications
1.92mm tube motors for shutters2.Max. lift capacity of 400kg
3.Electromagnetic brake system
4.Strong intensity and oil proof
The max.lift capacity reached 400kg in conjunction with different size of tubes.
Technically,Side-magnetic and electromagnetic brake system are adopted to make sure the motor security.
With features of simple design, easy installation, stable operation, accurate limit.
Motor Model
| Torque
(N.m) | Rotating
(rpm) | Rated Voltage (V) | Rated Frequency (Hz) | Rated Power (W) | Rated Current (A) | Number Of Tums (turn) | Protectio Index (IP) | Running Time (min) | Net Weight (Kg) |
SF92-140S | 140 | 12 | 230 | 50 | 580 | 2.6 | 12 | IP44 | ≥4 | 13/13.5 |
SF92-180S | 180 | 12 | 230 | 50 | 626 | 2.8 | 12 | IP44 | ≥4 | |
SF92-230S | 230 | 12 | 230 | 50 | 830 | 3.6 | 12 | IP44 | ≥4 |

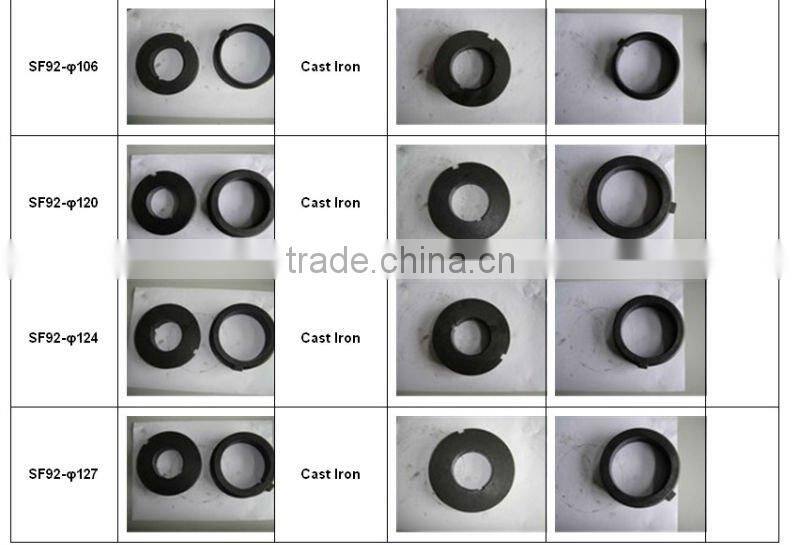

ASSEMBLED ACCESSORIES
