 Manual Solar Module Laminator

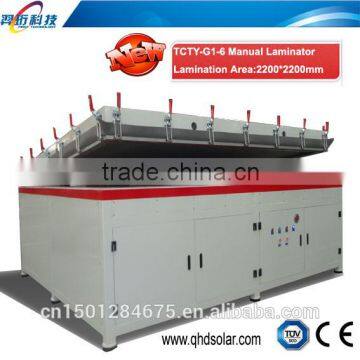

2200*2200mm Solar Panel Laminator in Solar PV Prodution Line

for manual&semi-auto Production line

(Manual&semi-auto Solar module producing line Turkey project)

Solar Panel Laminator

Lamination Area:2200*1100mm;2000*1200mm;2200*1750mm;2200*2200mm;2200*2600

REMARKS: We can design and manufacture all kinds of solar Panel laminator according to customer requirements.

Operation & Control

Oil heating. Special steel structured heating platen.Hole lines inside the heating platen to increase better temperature uniformity.

Laminating Process is composed to three sections with adjusted speed and pressure for each.

Professional oil pump supplier to ensure oil heating and pumping stable.

Advanced touch screen platform makes it more intuitive to operate, respond more quickly, performance more stable. It visualizes a diagram with all vacuum and temperature values.

PID intelligent temperature control system.

Troubleshooting directly on the touch screen with alarm message

Silicon membrane change in less than 30 minutes with quick clamp system in working temperature

This solar laminator has very little need of maintenance and all maintenance work can be performed by the operator without calling Yiheng’s technicians.

Main Specification Parameter
