JCX35-125-750 Colored steel roll forming machine

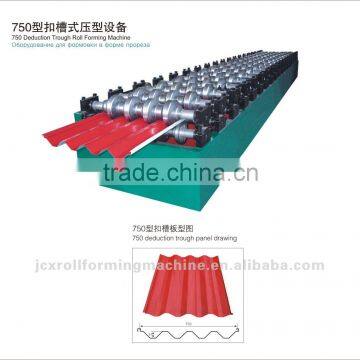

     Plate picture:

1.Technical specification

(1) Suitable material to process: galvanized sheet or color steel

(2) Thickness of the plate for both layers :0.4-0.8mm

(3) Feeding width : 1200mm

(3) Rollers steps:11-13rows

      Diameter of the active shaft: 70mm

(5)Roller material: 45# steel

(6) Wall thickness of the main forming machine: 12mm steel plate

(7)Main forming machine body : 300mmH steel

(8)Transmission chain is 0.6’’ ;

     Reducer is 3kw Xingxing Cycloid which works stably and no noise.

(9)Cutting hydraulic systerm adpats CDF-10 gear pump,the motor power is 3 kw, no noise, work stably, long life expentancy.

(10)Taida PLC control systerm, easy to operate, high precision and work stably. PLC is totally English words

(11) Electric: 3 phase/380V/50-60HZ or as per customers' requirements

(12) Machine color: blue

(13) Machine sizes:5200mm by1400mm by 1500mm(lengt by width by height)

   Note:the measurement is an approximation and that in reality there may be a slight diffenrce

(14) Speed: max 9m/min

2.Processing technique and deployment

Processes: manmade decoiler--Roll forming machine—PLC system—Hydraulic system

3.Components of line:

(1)   Automatic decoiler   (max capacity 5000kg)

(2) Roll-Forming M/C:
Steps:10-11steps         Roller Material: 45# steel

Voltage: 3phase/80V/50-60Hz.   line speed:8-10m/min;

Rolling chromium thickness:0.05 mm

(3) Cutting Mechanism

It adopts hydraulic drive and automatic location to decide the dimention and cut the target products.

Match equipment : one set of cutting tool, one hydraulic tank ,one cutter machine.

Stop to cut , Post cut     cutting length tolerance: ±2mm

Cutting tool material: GCr12 with quenched treatment 60-62°C

(4) Hydraulic System

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

Match equipment: a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes and two sets of electromagnetism valves.

Power of the oil pump: 3kw   Hydraulic oil :40#

(5)Computer control cabinet :

It adopts PLC to control. The target piece length is adjustable and digit of it can be adjusted

Computed mode has two modes: automatic and manual one.

(6)Counter :

One counter gauges length, pulses, and decides length

1. T/T , L/C

2. 30% Advanced pament first and the lest paid after received loading bill copy.

all the packaging of machine above can be arraged as customers' requirement.
