688 Floor Deck Forming Machine
- 20 Set / Sets per Month
- new port tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Floor | |
| Production Capacity | 9-12m/min | Place of Origin | Hebei, China | |
| Brand Name | JCX | Model Number | JCX-688 | |
| Power(W) | 11kw | Voltage | 380v | |
| Weight | 3-5T | Certification | TUV | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Welcome to review our roll forming machineComplete service
Experienced engineers
High efficency

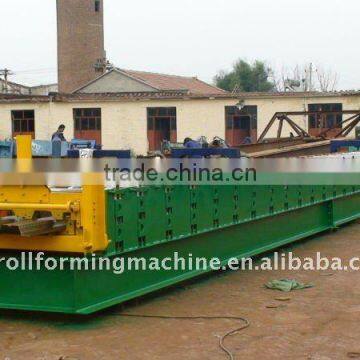

688 Floor deck forming machine
Pressed Steel Type | 688 | usage | ||
Effective coverage width | 688mm | |||
Expand Width (mm) | 1000(mm) |
steel bearing plate floor | ||
Thickness (mm) | 0.8 | 1.0 | 1.2 | |
Cross-section from the inertia (cm4 / m) | 91.62 | 119.38 | 142.01 | |
Cross-section to withstand the distance (cm3 / m) | 23.46 | 30.58 | 36.98 | |
Main technical parameter
1.manual decoile:rmanual expanding,passive uncoil
Inner Diameter. Φ460-520mm
Outer Diameter. Φ1400mm
2.weight capacity of decoiler:10T
3.machine stand: welded shape steel
4.type of forming machine:wallboard type with chain transmission
5.diameter of shaft: 80mm
6.material of shaft: high-grade 45 steel
7.chain:20A
8.motor power of forming machine:11KW*2
9.forming speed:10-15m/min
10. roll station:30 stations
11. material of roller :high-grade 45 steel
12. surface of roller coated with chrome 0.05mm thickness
13. motor of hydraulic station:3KW
14. hydraulic oil pump:bear pump CB-E314
15. type of cutting:hydraulic cutting
16. material of cutting blade:Cr12
17. heat treatment of cutting blade:HRC58°-60°
18. thickness of steel coil:0.6-1.2mm
19. tolerance of length:10±2mm
20. transducer: Panasonic
21. computer adopts Panasonic PLC
22. computer operating board adopts Touch screen
23. Voltage: 380V 3 phase 50HZ or at buyer’s requirement
