Home > Products > New Products > pinch plate making machine for advatisement&ceiling panel

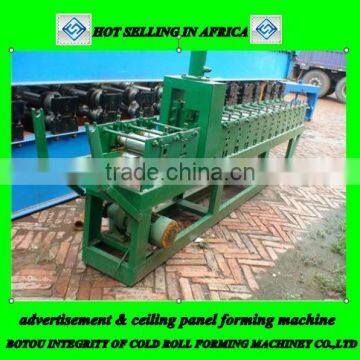

pinch plate making machine for advatisement&ceiling panel
- 20 Set / Sets per Month
- Tianjin
- T/T
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Other, steel frame | |
| Production Capacity | 8-12m/min | Place of Origin | Hebei, China | |
| Brand Name | JCX | Model Number | JCX steel strip | |
| Power(W) | 3+0.75kw | Voltage | 380V 3phase 60HZ or at buyers' requirement | |
| Dimension(L*W*H) | 7500mm by 1350mm by 1500mm (length by width byheight) | Weight | about 1.5T | |
| Certification | ISO,CE,SGS | Warranty | 1 year |
Product Description
Specifications
1.high effiicient2.exact working
3.easy controlling
petive price
5.reliable quality
| Production Description | ||||
| ||||
| Details show | |||||||||||||||||||||||||
. Processing technique and deployment Processes: manmade decoiler--Roll forming machine—PLC system—Hydraulic system----cutting Components of line:
(1) man-made uncoiler (max capacity 5000kg) (2) Roll-Forming: Steps:10-11steps Roller Material: 45# steel Voltage: 3phase/80V/50-60Hz. line speed:8-10m/min; Rolling chromium thickness:0.05 mm
(3) blade It adopts hydraulic drive and automatic location to decide the dimention and cut the target products. Match equipment : one set of cutting tool, one hydraulic tank ,one cutter machine. Stop to cut , Post cut cutting length tolerance: ±2mm Cutting tool material: GCr12 with quenched treatment 60-62°C
(4) Hydraulic System It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. Match equipment: a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes and two sets of electromagnetism valves. (5)control system : It adopts PLC to control. The target piece length is adjustable and digit of it can be adjusted Computed mode has two modes: automatic and manual one. (6) receiving table:
|
| Application | |
|
| Shippment | |
|
| Payment |
1. T/T , L/C 2. 30% Advanced pament first and the lest paid after received loading bill copy. |
| Packaging(General Container) | ||
All the packaging of machine above can be arraged as customers' requirement.
|
| Service | ||
|
| Certification |
 |
