Best Colour and Long Time Service Floor Deck Roll Forming Machinery
- TIANJIN XINGANG CHINA
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Produce Floor Deck Roll Forming Machinery
-
New Fashionable JCX-- 720 Floor Deck Roll Forming Machine
-
New Techology Floor Deck Roll Forming Machinery,high Quality Roll Forming
-
New Type 2013-best Quality JCX-688 Roll Forming Machinery
-
High Strength Bearing688 Floor Deck Roll Forming Machinery
-
High Strang Bearing688 Floor Deck Roll Forming Machinery
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Floor | |
| Production Capacity | 9--12 m/min | Place of Origin | Hebei, China | |
| Brand Name | JCX | Model Number | 76-344-688 | |
| Power(W) | 3kw | Voltage | 380v | |
| Weight | 6tons | Certification | TUV | |
| Warranty | ONE YEAR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Popular Glazed tile roll former2.Best quality forming machine
3.All the services roll forming machine
your trust is our greatest prestige!
Specifications
floor deck forming machine
1.best quality
2.floor deck
3.ISO9001
4.OEM service
Detailed Product Description

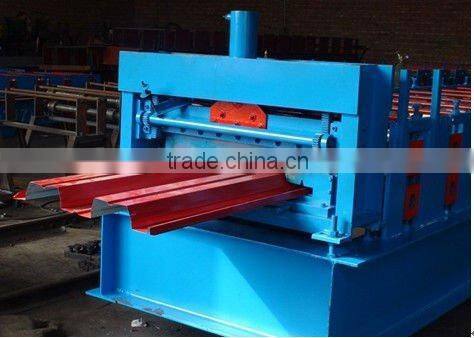

Our floor deck roll forming machine :
Pressed Steel Type | 688 | usage | ||
Effective coverage width | 688mm | |||
Expand Width (mm) | 1000(mm) |
steel bearing plate floor | ||
Thickness (mm) | 0.8 | 1.0 | 1.2 | |
Cross-section from the inertia (cm4 / m) | 91.62 | 119.38 | 142.01 | |
Cross-section to withstand the distance (cm3 / m) | 23.46 | 30.58 | 36.98 | |
Specifications
1. auto-tensioning coil inside the machine
a. mounted roll diameter
b. Maximum width 1000mm mounted volumes
c. Maximum load weight: 6000kg
d. Hydraulic Power: 3kw
e. Motor Power: 3kw
f. Cylinder diameter: 120mm
g. Working Pressure: 10Mpa
2 forming the host
a. Rack row floor: 24 rows: 24 steps
b. Spindle material 45 # steel modulation processing, diameter 80mm. Material 15GCR roller bearing steel processing HRC58-60 °.
d. Main motor power: 22kw
e. rolling speed :9-12m / min
f. stent 350 # steel welding jobs
g. Roll the surface of hard chromium plating thickness of 0.05mm.
3 Hydraulic Cutter
a. Blade material: Cr12 quenched
b. cut off system: the use of advanced hydraulic drive, forming automatically feet cut off, no deformation, no waste, a higher safety factor (host stop off)
4 Electronic Control System
a. OSD: The Taiwan and Taiwan reached 5.7-inch touch screen
b. the host computer (PLC): use of Taiwan and Taiwan reached DVP14ES
c. encoder: The South Korean Autonics ENC-1-1-1t-24
5 hydraulic system
a. use of Taiwan's advanced hydraulic system
b. Power: 4KW
My company welcome you to come to discuss all the way, your trust is our greatest prestige.
In product sales, we will be ready for new and old customers to unexpected benefits.
Looking forward to receiving your early inquiries!
