Automatic JCX 720 Floor Deck Roll Forming Machine Made in Botou Cangzhou CHINA
- NEW PORT TIANJIN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Glaze Steel | Use | Floor | |
| Production Capacity | 9-12m/min | Place of Origin | Hebei, China | |
| Brand Name | JCX | Model Number | JCX--720 floor deck | |
| Power(W) | 11kw | Voltage | 380V 50HZ 3phase 1 phase voltage 220V | |
| Dimension(L*W*H) | 6.8*1.2*0.9m | Weight | 3-5t | |
| Certification | TUV | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Welcome to review our roll forming machineskillful manufacture
latest technology
excellent quality
complete service

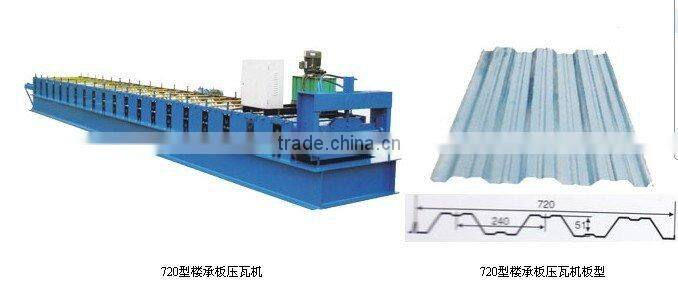

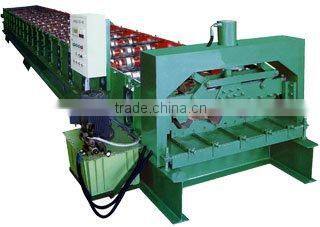

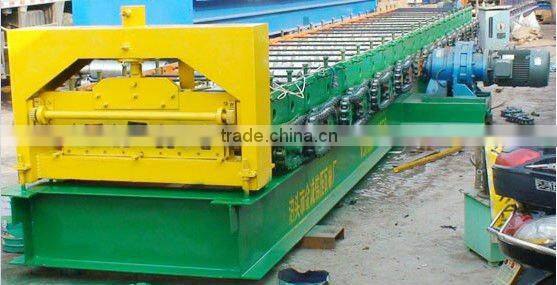

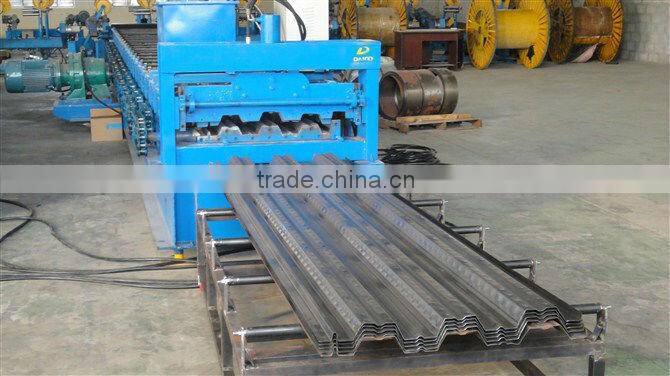

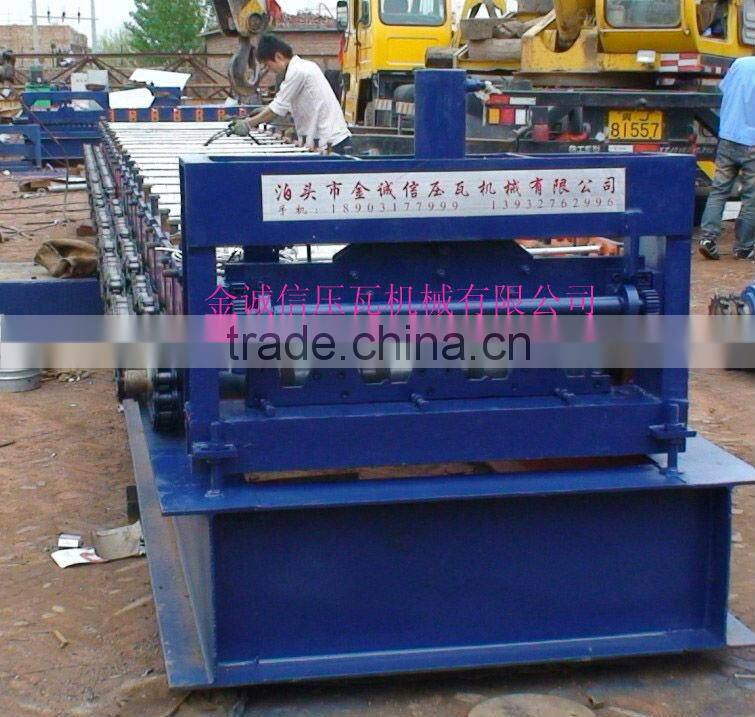

Welcome to view 720 floor deck roll forming machine
according to customers requirements ,costom roll forming machine
Detailed Product Description 720 Floor deck roll forming machine

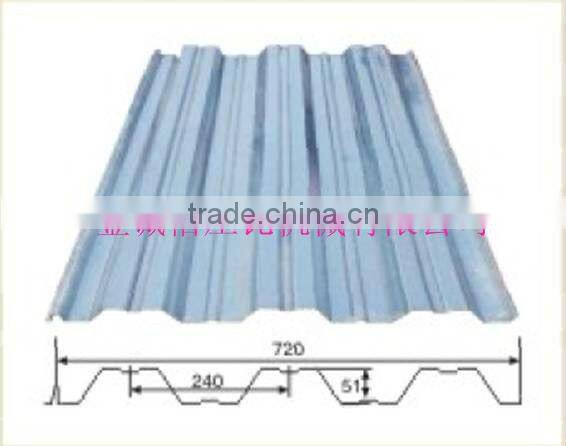

Pressed Steel Type | 720 | usage | ||
Effective coverage width | 720mm | |||
Expand Width (mm) | 1000(mm) |
steel bearing plate floor | ||
Thickness (mm) | 0.8 | 1.0 | 1.2 | |
Cross-section from the inertia (cm4 / m) | 91.62 | 119.38 | 142.01 | |
Cross-section to withstand the distance (cm3 / m) | 23.46 | 30.58 | 36.98 | |
Main technical parameter
1.manual decoile:rmanual expanding,passive uncoil
Inner Diameter. Φ460-520mm
Outer Diameter. Φ1400mm
2.weight capacity of decoiler:10T
3.machine stand: welded shape steel
4.type of forming machine:wallboard type with chain transmission
5.diameter of shaft: 80mm
6.material of shaft: high-grade 45 steel
7.chain:20A
8.motor power of forming machine:11KW*2
9.forming speed:10-15m/min
10. roll station:30 stations
11. material of roller :high-grade 45 steel
12. surface of roller coated with chrome 0.05mm thickness
13. motor of hydraulic station:3KW
14. hydraulic oil pump:bear pump CB-E314
15. type of cutting:hydraulic cutting
16. material of cutting blade:Cr12
17. heat treatment of cutting blade:HRC58°-60°
18. thickness of steel coil:0.6-1.2mm
19. tolerance of length:10±2mm
20. transducer: Panasonic
21. computer adopts Panasonic PLC
22. computer operating board adopts Touch screen
23. Voltage: 380V 3 phase 50HZ or at buyer’s requirement

EXELLENT QUALITY AND COMPETITIVE PRICE!
CHOOSE US , CHOOSE THE BEST!
Thank you for your time!
