Fixed/Controllable Pitch Tunnel Thruster/ Bow Thruster for Sale
US$ 1 - 10
/ Piece
1 Piece(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
-
Solas Approved Hot Sale Marine Azimuth Thruster/ Rudder Propeller
-
2015 Hot Sale Marine Azimuth Thruster/ Rudder Propeller
-
Marine Electric Power Bow Thruster/ Tunnel Thruster
-
Transportation Vessel Boat Tunnel Thruster / Bow Thruster
-
BV, RINA, CCS, ABS Certificate Marine Bow Thruster
-
Marine Rudder Propeller/Fixed Propeller BV/DNV/ABS Certificate
Product Details
| Material | Alloy | Certification | Other, CCS, BV, RINA | |
| Blades | 4 | Diameter (mm) | 500mm~2800mm |
Product Description

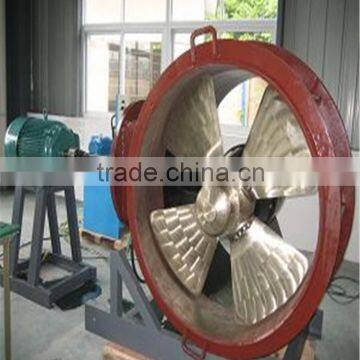

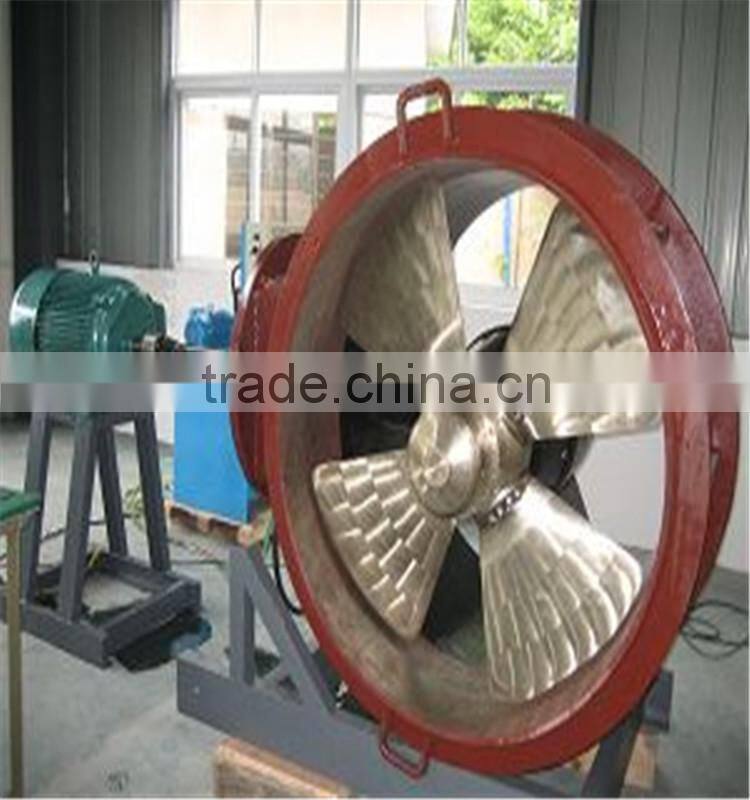

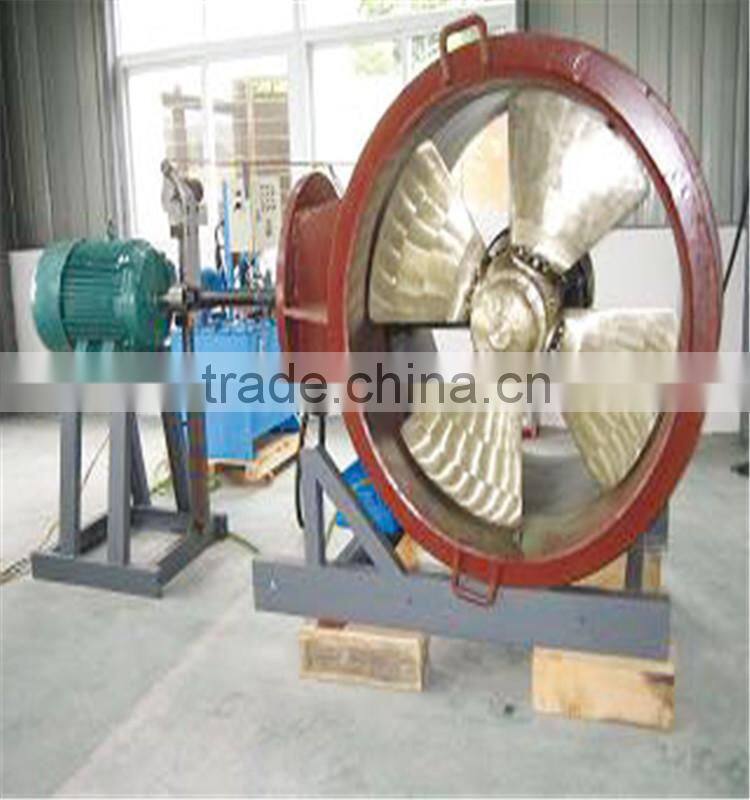

Fixed/Controllable Pitch Tunnel Thruster/ Bow Thruster for Sale
Tunnel Thruster:
Tunnel Thrusters are Fixed Pitch Propeller or controllable pitch propeller thrusters. The features as follows:
-Superior Strength
Tough and rational structural design has accomplished superior strength, Especially strong and durable driving shaft and seal are adopted for longer operation.
-Less Noise and vibration
Employing thicker duct plate, developing new propeller design and so on have achieved less noise and vibration which follow comfortable living environment on board
-Easy Installation and Periodical Inspection
Is especially reduced duct lip and has a structure that it is able to weld anywhere on outer surface of duct for installation, On the periodical inspection, it is almost
Not needed to change parts except seal.
-Various type of driving
Compact new control system can provide easy operation. Customer can choose various configuration of prime mover, electric motor, diesel engine or hydraulic motor.
Tunnel Thrusters are Fixed Pitch Propeller or controllable pitch propeller thrusters. The features as follows:
-Superior Strength
Tough and rational structural design has accomplished superior strength, Especially strong and durable driving shaft and seal are adopted for longer operation.
-Less Noise and vibration
Employing thicker duct plate, developing new propeller design and so on have achieved less noise and vibration which follow comfortable living environment on board
-Easy Installation and Periodical Inspection
Is especially reduced duct lip and has a structure that it is able to weld anywhere on outer surface of duct for installation, On the periodical inspection, it is almost
Not needed to change parts except seal.
-Various type of driving
Compact new control system can provide easy operation. Customer can choose various configuration of prime mover, electric motor, diesel engine or hydraulic motor.
Type | Propeller diameter (mm) | Power (KW) | Max thrust (KN) | Propeller type |
| MTT60 | 600 | 20~75 | 16 | FPP |
| MTT90 | 900 | 75~210 | 33 | FPP |
| MTT110 | 1100 | 200~330 | 46 | FPP,CPP |
| MTT130 | 1300 | 310~470 | 66 | FPP,CPP |
| MTT165 | 1650 | 450~760 | 108 | FPP,CPP |
| MTT185 | 1850 | 720~1020 | 132 | FPP,CPP |
| MTT200 | 2000 | 980~1270 | 165 | FPP,CPP |
| MTT225 | 2250 | 1200~1550 | 235 | FPP,CPP |
| MTT250 | 2500 | 1450~2100 | 326 | FPP,CPP |
| MTT275 | 2750 | 2060~2480 | 378 | FPP,CPP |
| MTT300 | 3000 | 2300~2930 | 462 | FPP,CPP |
