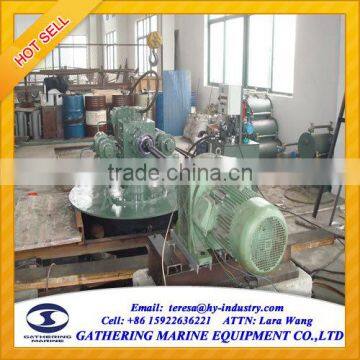

Well Installation Type Rudder Propeller / Azimuth Thruster

FOB Price

US$ 10,000 - 200,000 / Set

1 Set(Min. Order)

Port Shanghai China
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	GATHERING Azimuth Thruster
Model Number	SRP310 Azimuth Thruster		Part	Other, Thruster

Product Description

Marine Rudder Propeller / Azimuth Thruster

The Azimuth Thruster get the certification of CCS, BV, RINA etc.

Propeller Diameter:500~3200mm

Input power:45~3000kw

Speed: 750~2300rpm

Product Description

Functional Characteristics

· Rudder and thruster in one.

· Rudder propeller can steer in any direction of 360° above the water level

Advantage

· Provide all-around thrust

· Increase the operation flexibility of the vessel

Application

Large tugboat, harbor tug, drilling platform vessel, ocean engineering vessel

Installation Type

· Well installation

· Transom installation

· Deck installation

Marine Rudder Propeller Specification

Type	Input Power Max.(KW)	Input Speed Rated.(RPM)	Input Torque Max.(N.m)	Propeller Dia. Max. (mm)	Reduction Ratio	Weight(kg)
SRP12	45	2300	200	500	1.93	65
SRP45	100	23502500	450	800	2.5	190
SRP85	210	2350	850	950	2.68	400
SRP138	260	2000	1380	1100	3.01	1200
SRP180A	340	1800	1800	1150	3.46	1450
SRP180B	280	1500			2.88
SRP180C	180	1000			2.526
SRP226	350	1800	2260	1350	3.34	2000
SRP280	480		2800	1550	3.96	2100
SRP310A	580		3070	1550	3.718	2500
SRP310B	580	1500	3800	1550	3.002	2600
SRP330	620	1800	3300	1600	4.04	2800
SRO330B	620	1500	4100	1600	3.26	2800
SRP428A	735	1800	4280	1600	4.35	4500
SRP428B		1500	5220		3.671
SRP428C		1000	7140		2.769
SRP550	920	1800	5423	1800	5.059	6000
SRP1000	920	1000	9762	1800	2.804	6000
SRP1150	1103	1000	11500	1800	2.775	7000
SRP1150A	1103	750	15280	1800	2.102	7000
SRP1450	1324	1000	14800	2100	3.257	17000
SRP1850		750	18500		2.44	18000
SRP1850B		825	17900		2.68
SRP1850C		900	16200		2.93
SRP2000A	1545	525	30000	2200	1.925	20000
SRP2000	1471	750	20000		2.74
SRP2000B		825	18800		3.01
SRP2000C		900	17500		3.257
SRP2000D		1000	16000		3.66
SRP2500A	1912	750	31200	2450	3.32	24000
SRP2500B		825	28360		3.453
SRP2500C		900	26000		3.983
SRP2500D		1000	26000		4.42
SRP3000A	2206	750	31200	2650	3.32	28000
SRP3000B		825	28360		3.453
SRP3000C		900	26000		3.983
SRP3000D		1000	26000		4.424
SRP4000A	3000	750	42000	3200	4.41	53000
SRP4000B		825	38200		4.85
SRP4000C		900	35000		5.29
SRP4000D		1000	32000		5.88

Packaging & Shipping

Packing details:Wooden case / Iron frame for different goods

Shipping date: 30~60 work days

Our Services

Ⅰ.Warranty

12-month warranty, excluding the related parts

Ⅱ.Installation and Commissioning

A.We provide Layout Drawings & Installation Drawing after payment.

B. If needed, we will send engineers to the Buyer’s site for supervision of Installation and Commissioning.

Expenses abroad should be paid by the buyers.

Ⅲ. Inspection:

A. Customer visit factory;

B. We offer pictures for inspection;

C. The third party inspection appointed by Customers.

You will get the after-sale service all over the world. Convenient, Fast, High Efficiency, World-wide, etc.

Please contact us if you are interested in Marine Propeller, Thruster etc.
