MMO anode

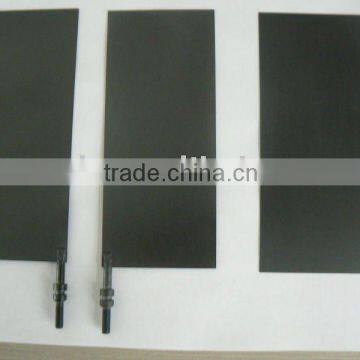

MMO Anode for Sodium Hypochlorite Generator

Material

Gr1 Titanium as substrate, mixed Ruthenium-Iridium-Titanium oxide or mixed Ruthenium-Iridium-Stannum-Titanium oxide as coating

Technology

Sand blasting, Acid washing and Brush Coating

Dimension

 & Shape

Different dimension and shape is available, or according to custom design/drawing

Working

Parameter

l         Current density≤2000A/M2

l         Temperature<60°C

l         Max content of Fluoride ion is 200PPM

Working Equipment

Sodium Hypochlorite Generator

Working Principle

n         NaCL+H2O=NaCLO+H2↑

n         NaClO + H2O = HClO + NaOH

n         HClO → HCl + [O]

n         HCl + NaOH =NaCL+H2O

Electrolyte

Salt water / Saline solution/ Brine/ Sea water

Features

u       High current efficiency property

u       High catalytic property

u       Lasting working life

u       Light weight electrodes

u       Keep the operating voltage stably

u       Produce NaCLO & Chlorine high efficiency

Applications

Sodium Hypochlorite(NaClO) production

Remarks

v        Titanium anode also called MMO anode,DSA & Insoluble anode

v        Cathode also be provided

Packing

Plastic or paper as inside, carton or plywood case as outside, or according to client's demand

MOQ

Flexible,small sample order acceptable
