Typical Ruthenium Iridium titanium anode for sodium hypochlorite generator

Specifications

Typical Ruthenium Iridium titanium anode for sodium hypochlorite generator

1. Product general introduction:

a. Substrate: pure titanium Gr1 or Gr2, ASTM B265

b. Coating: Ru-Ir mixed metal oxide

c. Life span: 5-8 years

2. Features:

a. High antiseptic property
b. High current efficiency.
c. Lasting working life.
d. Matrix metals can be resumed when electrodes lose activity.

3. Representative Instances:
a. Producing Sodium Chloride by Electrolyzing Saline Solution:
b. Electric Current Density: 2000~2500A/M2
c. Sodium Chloride Density:250~350g/L
d. Temperature: 40-50°C
e. Working Life:>6 Years
f. Organic Compounding:
g. Electric Current Density: 1500A/M2
h. Sodium Chloride Density:15%
i. Temperature: 45~50°C
j. Electrolytes: Hydrochloric Acid + Methyl Benzyl

4. Applied in:

a. Sea water electrolysis

b. Swimming pool disinfection

c. Chlor-alkali industry

d. Sewage water treatment

e. Metal electroplating

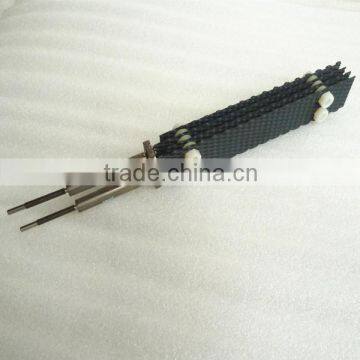

5. Detailed pictures:

6. Qualifications:

Standard packing:

Shipment and payment:

Professional & technical advice on anode assembly

We have a professional technical team to assist you to build anode assembly

anode size, electrical connetor, current distribution, life span consideration and

cost for the telfon washer, bolts and screws.

 When you need our anode assembly, we need you to provide the below information:

1. Application?

2. what's the final product?

3. Electrolyte in the solution and density?

4. Current density  ?A/m²

5. Total anode area and cell size?

6. Anode and cathode reversal electrolysis or not?

7. Life span you require?
