Home > Products > MATRIX > 8X8 VGA CCTV Matrix

8X8 VGA CCTV Matrix

FOB Price

US$ 1 - 2 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Odin
Model Number	DC-MAX0808-V

VGA CCTV Matrix
1 FPGA architecture
2 Point-to-point design
3 Resolution up to 1920x1200
4 12U standard case with cooler

VGA CCTV Matrix Description:

VGA CCTV Matrix

self-owned brand

Resolution up to 1920x1200 60Hz

VGA CCTV Matrix Function:

1. No compression and decompression to signal

2. Unipath 300MHz

3. Support switching random and rapidly

4. 3U standard case, build-in cooler

5. Support Resolution up to 1920*1200@60Hz

6. Build-in card slots, adjustable inputs/outputs

VGA CCTV Matrix Specification:

	Classify	Parameter
INPUT	Port	Standard VGA Port 4 card slots, 8 way inputs
	Resolution	1920*1200@60Hz
	EDID	Odin Standard Digital EDID
	Bandwidth	Unipath 300MHz (-3db)
	Indicator light	1 Light/Unipath
	Signal Level	0.5Vpp~1Vpp
	Input Impendence	75 Ohm
OUTPUT	Port	Standard VGA Port 4 card slots, 8 way outputs
	Resolution	1920*1200@60Hz
	Bandwidth	Unipath 300MHz(-3db)
	Signal Level	0.7Vpp
	Output Impendence	75 Ohm
CONTROL	Input	Standard RS232
	Output	Standard RS232
	Keyboard	None
	Software	MagicTunning Software
	Switch Time	<1S
	Plan	Max 10 Groups
OTHER	Power	110~220VAC/50Hz
	Consumption	15W
	Working Temperature	0°C~85°C
	Storage Temperature	10%~90%
	Size	432.22mm x223.25mm x 133.5mm(WxDxH 19”3U)
	Weight	3.0Kg
	Installation	Cabinets or Desktop installation
	Shock Resistance	1.2M HIGH
	ESD	4KVDC

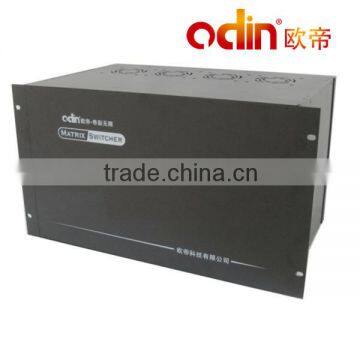

VGA CCTV Matrix Pictures:
