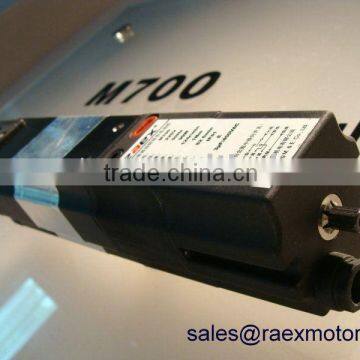

RAEX Motorized Outdoor Skylight System M700
Negotiable
/ Piece
100 Pieces(Min. Order)
- Huangpu Guangzhou
- Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | RAEX | |
| Model Number | M700 | Style | Other, Skylight motor |
Product Description
Feasure:
♦Quiet , AC motor.
♦RF control, switch and /or network control.
♦Strong motor can pull skylights weighing up to 10m2.
♦Stable mechanical limit system.
♦Easy to install, easy to operate.
♦Compact aluminum track with electrophoresis is available for straight and curve curtains.
Parameters:
230V 50Hz
| Product Name | Rated Voltage | Rated Frequency | RatedPower Input | Rated Torque | Rated Speed | Speed | Insulation Class | Protection Index | Running Time |
| M700 | 230V | 50Hz | 90W | 1Nm | 124rpm | 0.16m/S | I.cl.E | IP41 | S2 6min |
| M701 | 230V | 50Hz | 120W | 2Nm | 124rpm | 0.16m/S | I.cl.E | IP41 | S2 6min |
| M702 | 230V | 50Hz | 190W | 4Nm | 124rpm | 0.16m/S | I.cl.E | IP41 | S2 4min |
| M710 | 230V | 60Hz | 140W | 2Nm | 124rpm | 0.16m/S | I.cl.E | IP41 | S2 6min |
110V 60Hz
| Product Name | Rated Voltage | Rated Frequency | Rated Power Input | Rated Torque | Rated Speed | Speed | Insulation Class | Protection Index | Running Time |
| M700 | 110V | 60Hz | 90W | 1Nm | 148rpm | 0.16m/S | I.cl.E | IP41 | S2 6min |
| M701 | 110V | 60Hz | 120W | 2Nm | 148rpm | 0.16m/S | I.cl.E | IP41 | S2 6min |
| M702 | 110V | 60Hz | 190W | 4Nm | 148rpm | 0.16m/S | I.cl.E | IP41 | S2 4min |
| M710 | 110V | 60Hz | 140W | 2Nm | 148rpm | 0.16m/S | I.cl.E | IP41 | S2 6min |
| M700 Measurement:260mmX55mmX55mm Net Weight: 1.53kg | M701 Measurement: 270mmX55mmX55mm Net Weight: 1.76kg |
| M702 Measurement:290mmX55mmX55mm Net Weight: 1.82kg | M710 Measurement: 270mmX55mmX55mm Net Weight: 1.83kg |
Loading capacity:
| M700 with P322 | Torque | Max.width | Max.square mtrs | Max.pulling capacity |
| M700 | 1Nm | 8m | 16 | 40kg |
| M701 | 2Nm | 12m | 30 | 50kg |
| M701X2 | 2NmX2 | 12m | 48 | 120kg |
Accessories:
Connection diagram:
