Home > Products > Skylight motor > RAEX skylight motor M700

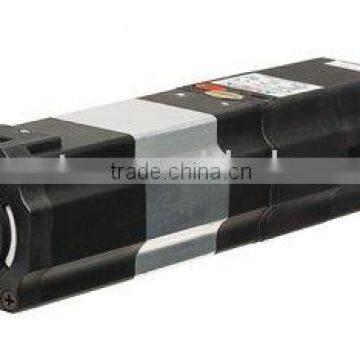

RAEX skylight motor M700
Negotiable
/ Piece
100 Pieces(Min. Order)
- HUANGPU GUANGZHOU
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Raex | |
| Model Number | m700 |
Product Description
Specifications
RAEX skylight motor,quiet motor,strong capacity motor,AC motor.welcome to RAEX
RAEX skylight motor M700
Features
Quiet , AC motor
RF control , switch and /or network control
Strong motor can pull skylights weighing up to 10
Stable mechanical limit system
Easy to install ,easy to operate
Compact aluminum track available for straight and curve curtains
Parameters:
230V 50Hz
| Product Name | Rated Voltage | Rated Frequency | Rated Power Input | Rated Torque | Rated Speed | Speed | Insulation Class | Protection Index | Running Time |
| M700 | 230V | 50Hz | 90W | 1Nm | 124rpm | 0.16m/S | I.cl.E | IP41 | S2 6min |
| M701 | 230V | 50Hz | 120W | 2Nm | 124rpm | 0.16m/S | I.cl.E | IP41 | S2 6minS2 6min |
| M702 | 230V | 50Hz | 190W | 4Nm | 124rpm | 0.16m/S | I.cl.E | IP41 | S2 4min |
| M710 | 230V | 60Hz | 140W | 2Nm | 124rpm | 0.16m/S | I.cl.E | IP41 | S2 6min |
110V 60Hz
| Product Name | Rated Voltage | Rated Frequency | Rated Power Input | Rated Torque | Rated Speed | Speed | Insulation Class | Protection Index | Running Time |
| M700 | 110V | 60Hz | 90W | 1Nm | 148rpm | 0.16m/S | I.cl.E | IP41 | S2 6min |
| M701 | 110V | 60Hz | 120W | 2Nm | 148rpm | 0.16m/S | I.cl.E | IP41 | S2 6min |
| M702 | 110V | 60Hz | 190W | 4Nm | 148rpm | 0.16m/S | I.cl.E | IP41 | S2 4min |
| M710 | 110V | 60Hz | 140W | 2Nm | 148rpm | 0.16m/S | I.cl.E | IP41 | S2 6min |
| M700 Measurement:260mmX55mmX55mm Net Weight: 1.53kg | M701 Measurement: 270mmX55mmX55mm Net Weight: 1.76kg |
| M702 Measurement:290mmX55mmX55mm Net Weight: 1.82kg | M710 Measurement: 270mmX55mmX55mm Net Weight: 1.83kg |
Load capacity(skylights):
| M700 with P322 | Torque | Max.width | Max.square mtrs | Max.pulling capacity |
| M700 | 1Nm | 8m | 16 | 40kg |
| M701 | 2Nm | 12m | 30 | 50kg |
| M701X2 | 2NmX2 | 12m | 48 | 120kg |
Connection diagram:
Accessories:
