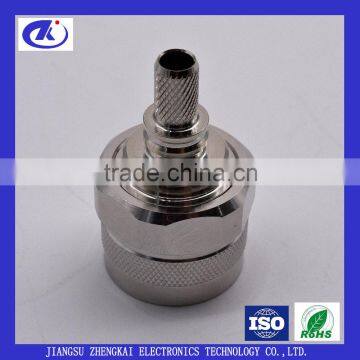

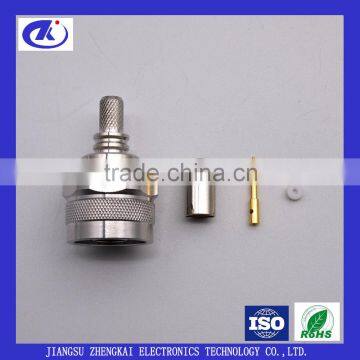

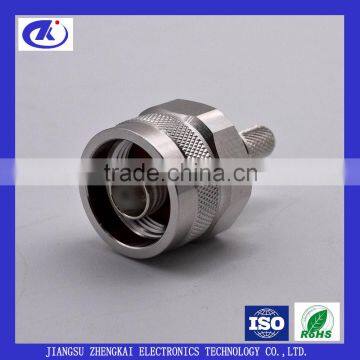

N Male for LMR240 cable RF connector
USD $0.95 - $1.02
/ Piece
1 Piece(Min.Order)
- 3000 Piece / Pieces per Month
- SHANGHAI SHENZHEN GUANGDONG NINGBO QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Low PIM 4.3/10 FEMALE CONNECTOR FOR 141 CABLE
-
4.3/10 Screw male connector for 1-1/4"cable
-
N Male right angle connector for LMR240 cable
-
Low PIM -160dBc 4.3-10 female flange connector
-
RF Coaxial 4.3/10 male Straight Connector for 1-5/8"Feeder cable(Screw Type )
-
Screw Type 4.3/10 Male Straight for 1/2"Super Flexible cable
Product Details
| Place of Origin | Jiangsu, China | Brand Name | ZK N male connector | |
| Model Number | N-C-J240 N male connector | Type | Other, N | |
| Application | RF | Gender | Male |
Product Description
Product Description

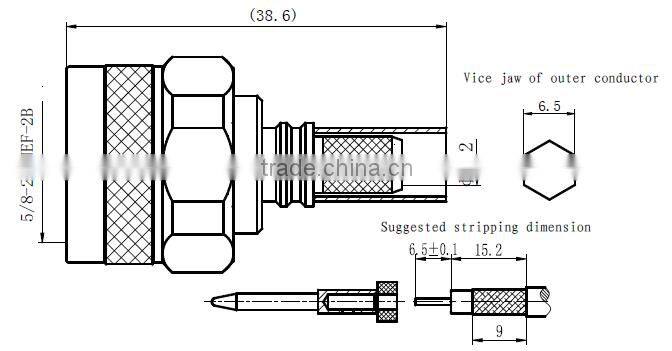

Interface
| According to | IEC60169-16 |
Electrical
| 1 | Characteristic Impedance | 50ohm |
| 2 | Frequency Range | DC-6GHz |
| 3 | VSWR | 1.15 |
| 4 | Dielectric withstanding voltage | ≥2500RMS,50Hz,at sea level |
| 5 | Dielectric Resistance | ≥5000MΩ |
| 6 | Contact Resistance | Outer Contact≤1.0mΩ ;Center Contact≤1.0mΩ |
Mechanical
| 1 | Durability | Mating cycles ≥500 |
Material and plating
| Description | Material | Plating |
| 1 | Body | Brass | Tri-alloy |
| 2 | Insulator | PTFE | – |
| 3 | Center conductor | Brass | Au |
Environmental
| 1 | Temperature Range | -40℃~+85℃ |
1.CNC machines ,advanced test equipment
2.All products are suit for ROHS.
3.ISO14001 certificate,ISO9001 certificate

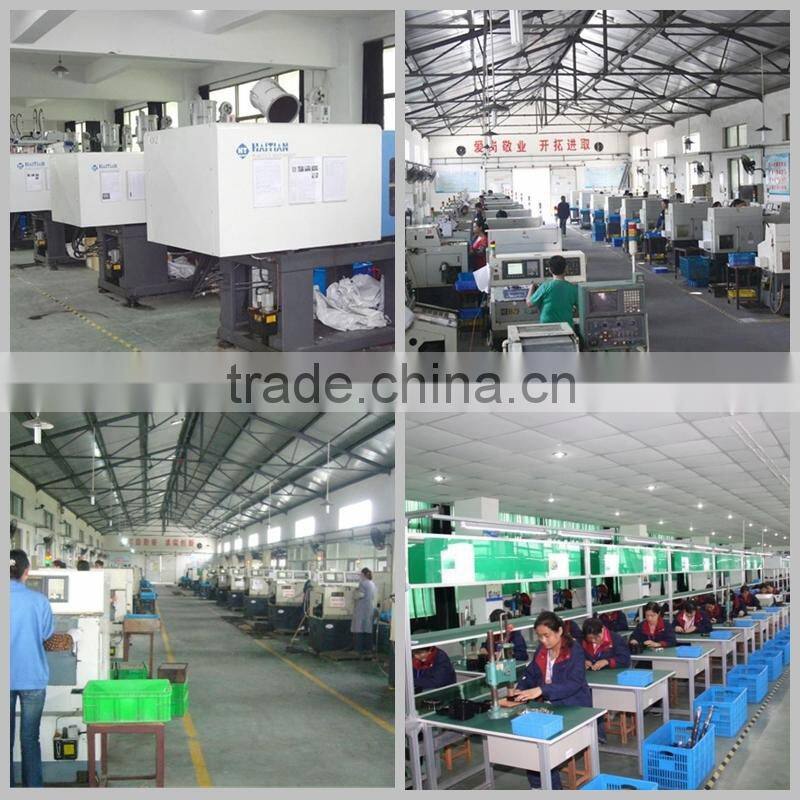

Metal Workshop

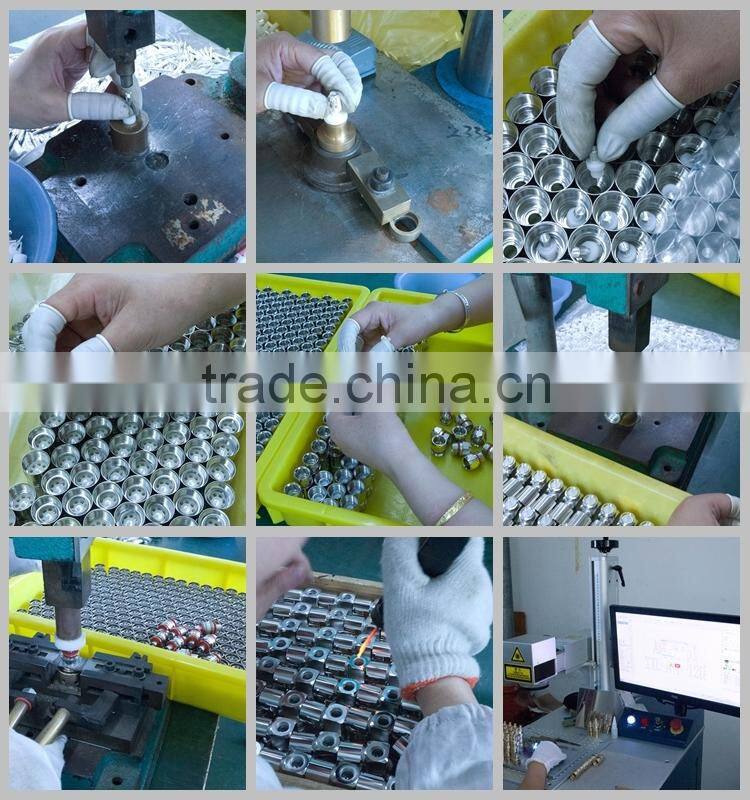

Assembly Workshop
Assembly workshop and professional team;

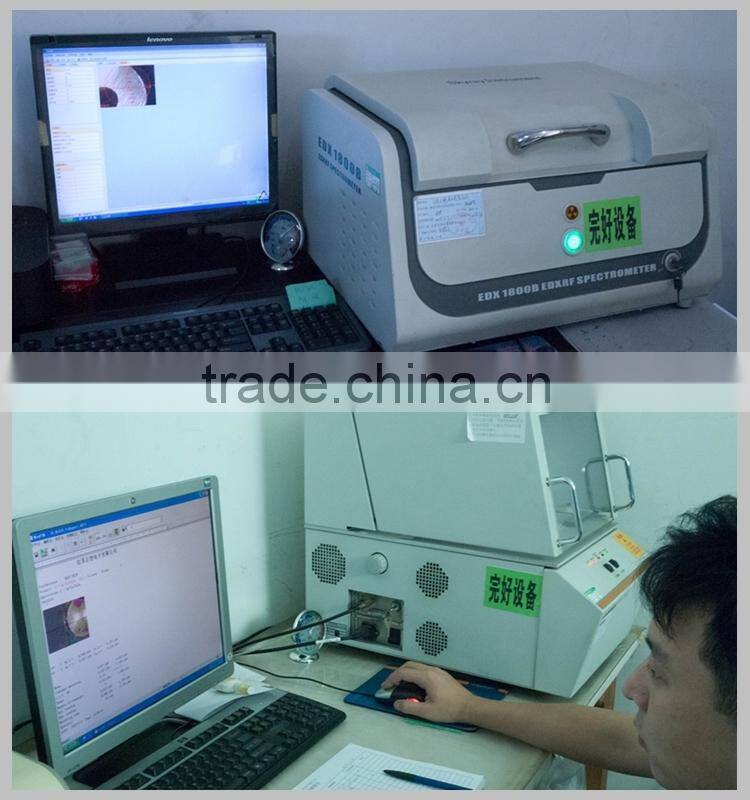

Test Area
Quality: We use the best quality components to ensure the standard of our
product range is of the highest caliber
All products we sold out are strictly selected and tested by our QC department

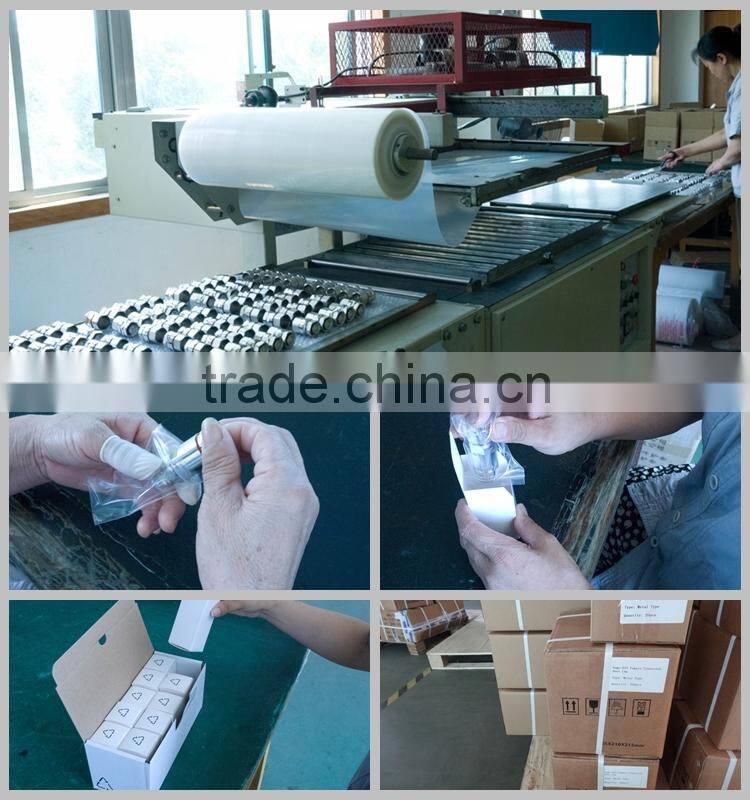

Packing Area
Certifications
