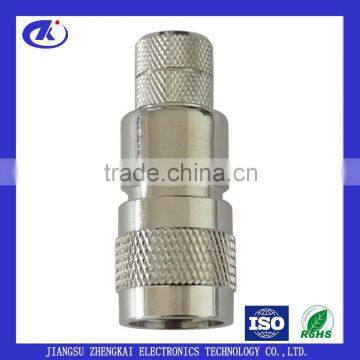

RF Coaxial TNC male connector LMR400 Cable

FOB Price

USD $0.95 - $1.05 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electrical Requirements
Impedance	50Ω
Frequency	DC-3GHz
Withstand Voltage(at Sea Level)	1500V,50Hz
Working Voltage(at Sea Level)	500V,50Hz
Insulation Resistance	≥ 5000MΩ
Sheltered Effectiveness	straight60 dB.3GHz
Contact Resistance	Center Conductor		≤1.5mΩ
	Outer Conductor		≤1mΩ
Mechanical Requirements
Connection Torque	Normal Torque			46-69N.cm
	Endurance Distance			1.7 N.m
Center Conductor Retention	0.57N(standard)
Outer Conductor Retention	2.25N
Vibration	150m/S²,10-2000Hz,15g_nAcceleration
Impact	750m/ S²,STW,11ms,75g_nAcceleration
Durability	500
Environmental Requirements
Temp.Range	-55°C - +155°C
Salt Spray	48h spray
Material
Body	Brass
Center Conductor	Plug	Brass
	Jack	Phosphor Bronze
Outer Conductor	Brass
Crimp Tube	Brass/ Red Copper
Other Metal	Brass
Insulator	PTFE
Sealing Ring	Silicone Rubber
Surface Treatment
Body	Nickle
Center Conductor	Gold
Outer Conductor	Nickle
Other Metal	Nickle
Crimp Tube	Nickle

Metal Workshop

Assembly Workshop

Assembly workshop and professional team;

Test Area

Quality: We use the best quality components to ensure the standard of our

product range is of the highest caliber

All products we sold out are strictly selected and tested by our QC department

Packing Area
