Home > Products > RF CONNECTORS > RF DIN (7/16) Female Connector for 1-1/4"cable

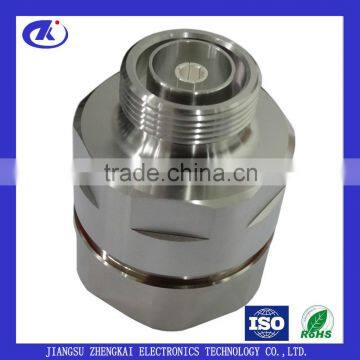

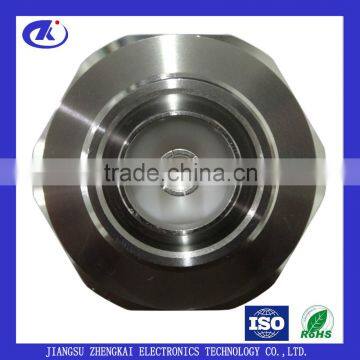

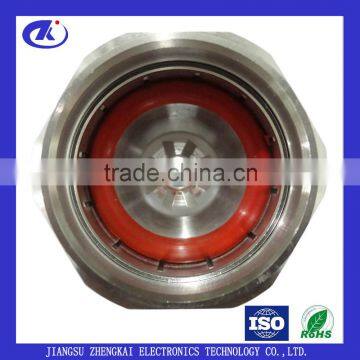

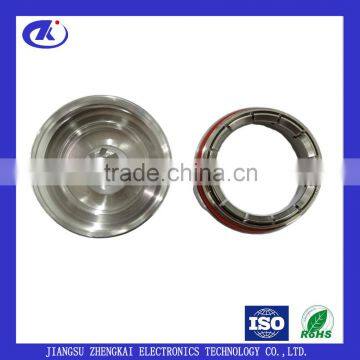

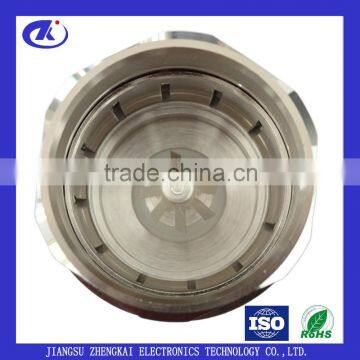

RF DIN (7/16) Female Connector for 1-1/4"cable
US$ 9 - 9.9
/ Piece
1 Piece(Min. Order)
- SHANGHAI SHENZHEN GUANGDONG NINGBO QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | ZK DIN type connector | |

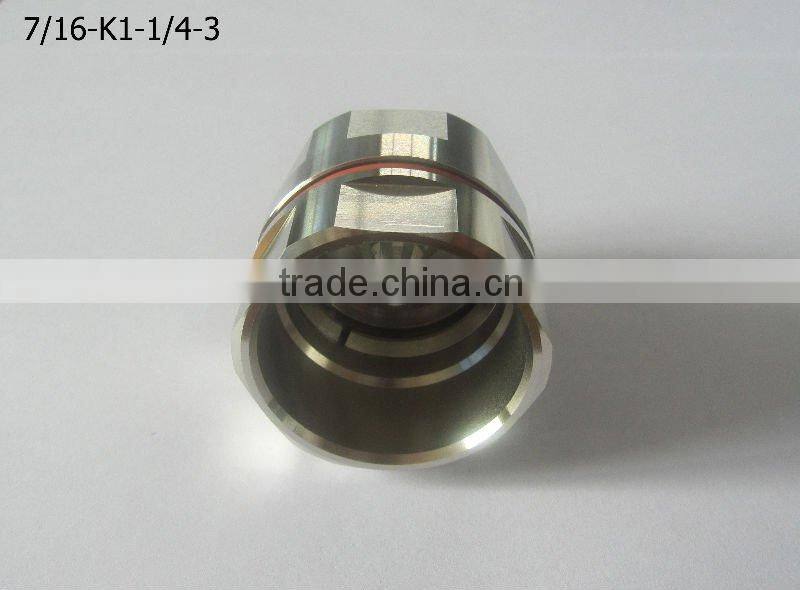

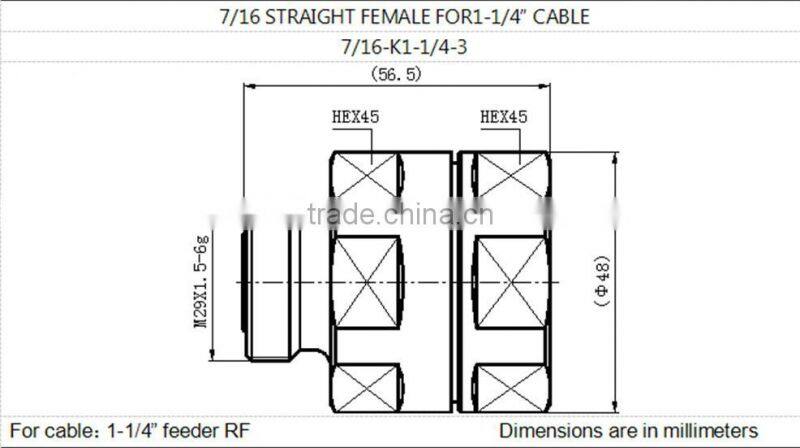

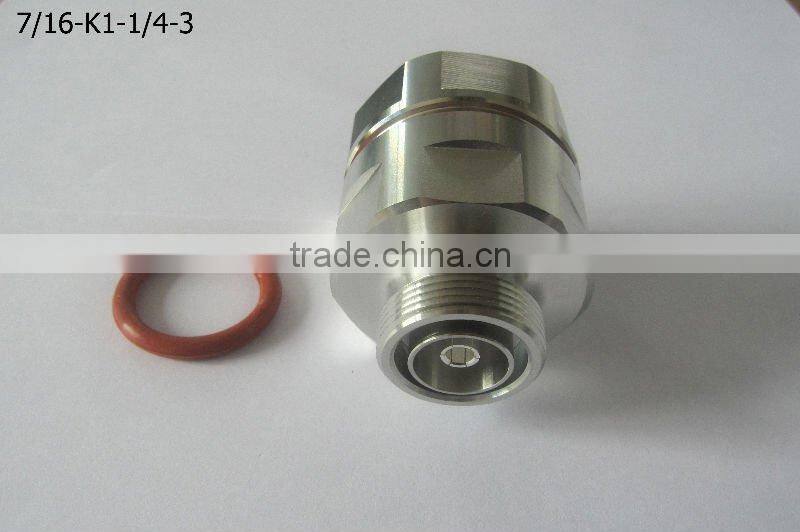

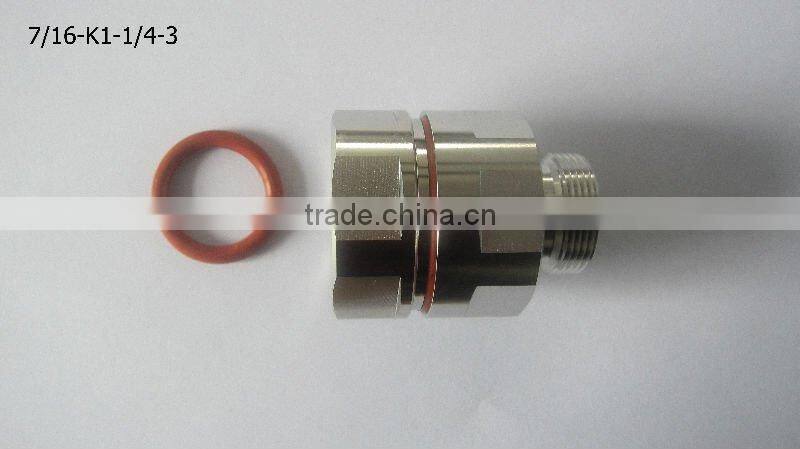

| Model Number | 7/16-K1-1/4-3 DIN type connector | Type | DIN | |
| Application | RF | Gender | Female |
Product Description
Product Description
Interface
| According to | IEC60169-16 |
Electrical
| 1 | Characteristic Impedance | 50ohm |
| 2 | Frequency Range | DC-6GHz |
| 3 | VSWR | 1.15 |
| 4 | Dielectric withstanding voltage | ≥4000RMS,50Hz,at sea level |
| 5 | Dielectric Resistance | ≥10000MΩ |
| 6 | Contact Resistance | Outer contact≤1.5mΩ ;Center Contact≤0.4mΩ |
| 7 | PIM | ≤-155dBc |
Mechanical
| 1 | Durability | Mating cycles ≥500 |
Material and plating
| Description | Material | Plating |
| 1 | Body | Brass | Tri-alloy |
| 2 | Insulator | PTFE | – |
| 3 | Center conductor | Phosphor bronze+Beryllium bronze | Ag |
| 4 | Other | Brass | Ni |
| 5 | Gasket | Silicone rubber | - |
Environmental
| 1 | Temperature Range | -40℃~+85℃ |
| 2 | Watertightness | IP67 |
| 3 | Rosh-compliance | full ROSH compliance |
| 4 | Salt-fog test | 96h |
1.CNC machines ,advanced test equipment
2.All products are suit for ROHS.
3.ISO14001 certificate,ISO9001 certificate
Metal Workshop
Assembly Workshop
Assembly workshop and professional team;
Test Area
Quality: We use the best quality components to ensure the standard of our
product range is of the highest caliber
All products we sold out are strictly selected and tested by our QC department
Packing Area
Certifications
