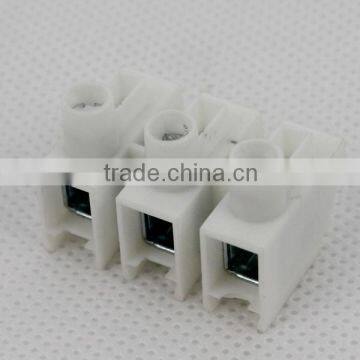

Ballast terminal blocks(push-in type)
- 1000000 Piece / Pieces per Month
- Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | sineyi | |
| Model Number | PA11 | Type | Crimp Terminal |
Product Description
Housing Material : PA66 Polymide 6/6
94V-2 level 94V-2 Grade
Current:12A
Voltage:450V(VDE/FI/CQC);300V(UL)
Wire Range:
Push in side--0.5-15mm2 solid
20-16 solid AWG
Screw side--2.5mm2 Rigid/Flexible
18-14 solid AWG
Strip Length:8-9mm/0.32-0.36in
Temperature:-40oC to 110oC(VDE/FI/CQC) 105oC(UL)
Pin Spacing:10mm
Housing: Polyamide66 (Ivory) UL 94V-2
Insert:(Steel,Zinc Plated)
Screw: M3*7,Zincplated
Dual Conductors
Screw/push-in combined
Easy insertion and removal
Test slot provide
Chassis Mounting
Choice of 2or 3 poles
