540series Fuse Terminal Connector block, Electrical Termninal Strip
- 1000000 Piece / Pieces per Month
- Ningbo
- T/T
You May Like
-
540 series fused terminal block with 3 contacts, electrical terminal strip, European standard
-
high temperature silicon fiber glass sleeving
-
Silicone Rubber Glassfiber insulating Sleeving(inside rubber and outside fiber)
-
The article LED soft light silicone casing
-
silicom fibergalss sleeve
-
silicom fibergalss sleeve
Product Details
| Place of Origin | Zhejiang, China | Brand Name | sineyi | |
| Model Number | Cat 5 | Type | Crimp Terminal |
Product Description

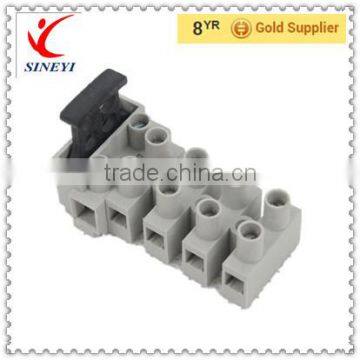

540series Fuse Terminal Connector block, Electrical Termninal Strip
Material:Nylon 66,UL 94V2, Natural
Housing:94V-2 Level 94V-2 Grade
Insert: Brass, Nickel plated
Screw: M3*6 Yellow chromated
Earth screw:M3*14 Yellow chromated
Voltage/Ampere(IEC)
Terminal Strip: 400V/15A
Fused Carrier: 250V/6.3A
Voltage/Ampere(UL)
Terminal Strip: 200V/15A
Fused Carrier: 200V/10A
Temperature
Working Temperature:-40°C to 100°C
140 °C
Wire:14AWG
Packaging:
540-1GWP 100*10 per/ctn
540-2GWP 70*10 per/ctn
540-3GWP 50*10 per/ctn
540-4GWP 40*10 per/ctn
540-5GWP 40*10 per/ctn
Terminal strip with fuse-carrier
Dovetail for different terminal combinations
For 50*20 mm fuse
Earth-screw option
IP20 finger protection
Anti-rotation spigot as option
1,2,3,4and 5 poles available
Color-housing in grey, fuse carrier in black
