150W High Power LED Tunnel Light

FOB Price

Negotiable / Piece

2 Pieces(Min. Order)

Port Shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Lamp Power(W)	150	Color Temperature(CCT)	Pure White
Lamp Body Material	Stainless Steel	IP Rating	IP65
Certification	CE, CQC, EMC, FCC, PSE, UL, VDE	Warranty(Year)	3
Place of Origin	Guangdong, China	Brand Name	SPARK LED Tunnel Light, SPARK
Model Number	SPT-150

Product Description

150W PSE/CE/RoHS Cree LED Tunnel Lights

High Power LED Tunnel Light is new type of high efficient and energy saving product using High Power LED as light source. With low temperature, no UV and IR, LED Tunnel Light can be truly called Green Light and widely used.

Spark LED Tunnel Light is designed to be outstanding dustproof and waterproof by lamp body using die-casting aluminum alloy and tempered glass and core lamp using high brightness material. Spark make every effort to perfect every details including the spare parts, improving our LED Tunnel Light to be safer, more reliable, energy-saving, longer lifespan and better applicable for public areas such as square, tunnel etc.

As professional LED Tunnel Light manufacturer, all our products have been accredited with CE & RoHS certification. In addition to standard LED Tunnel Light, we also provide customized Tunnel Light Project solution for customers. We welcome you for more information!

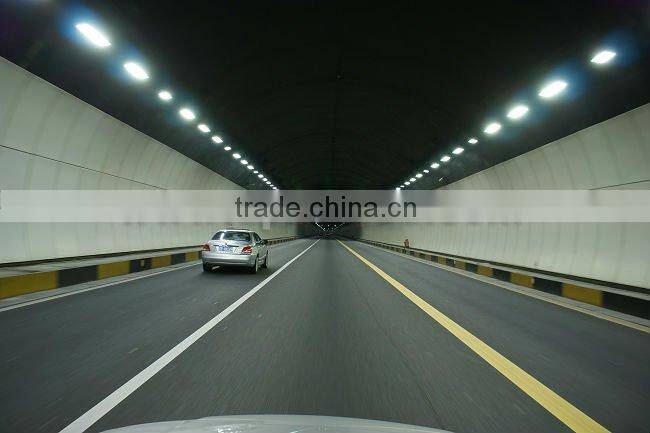

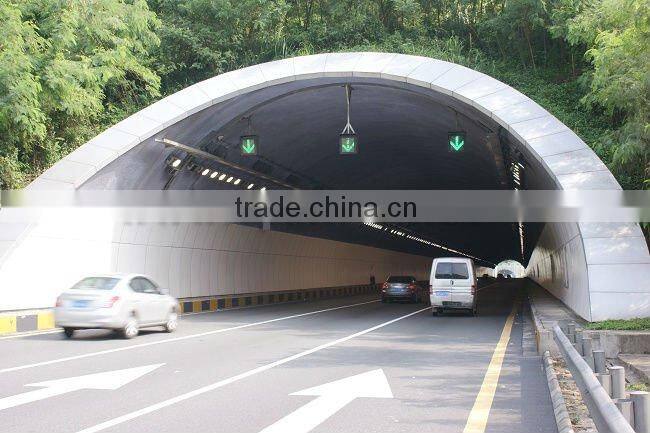

Application: tunnels, parking lots, warehouses, petrol stations etc.

More than 70% energy saving
Light control and time-phase dimming, saving further energy
High quality power supply, reliable and stable, automatically reduce current against overheating temperature
Unique optical design & rectangular beam, suitable for roadway illumination

Main Technology Index:

Model No.		SPT-150
LED Light Source		Philips Lumileds/CREE LED
LED Quantity		84 x 1PCS LED
LED Luminous Efficiency		107-122 lm/w
Lamp Rated Total Power		150W
Lamp Rated Luminous Efficiency		80 lm/w
LED Drive Current		500mA
Lamp Rated Total Luminous Flux		12,100 lm
Average lllumination and Effective Area	4M Height	7.86m×10.17m ≥59LUX
	6M Height	11.79m×13.56m ≥26LUX
	8M Height	15.72m×18.08m ≥15LUX
	10M Height	19.65m×22.60m ≥9LUX
Color Rendering Index(CRI)		Ra>75
Power Efficiency		85%
Color Temperature(Color Temperture)		Cool white: 5000-6300K
		Pure white: 4000-5000K
		Warm white: 2700-3500K
Beam Angle		Horizontal Axis:100° ; Vertical Axis:90°
Light Distribution Curve(Beam Pattern)		Asymmetric (Bat Wing) / Rectangular Beam
Input Voltage		AC 85-264V, 277V
Frequency Range		47-63Hz
Power Factor(PF)		≥ 0.95
Total Harmonic Distortion(THD)		< 15%
Storage Temperature		-40°C--+80°C
Working Environment		-40°C--+50°C ; 10%-95%RH
Light Body and Lampshade Material		Aluminum Alloy and Toughened Glass
Working Lifetime		> 50,000hrs
IP Rating		IP66
Net Weight		9.46kg
Gross Weight		10.58kg
Product Dimension(mm)		1270(L) x 130(W) x 150(H) (mm)
Package Size(mm)		1320(L) x 180(W) x 160(H) (1 PC)
