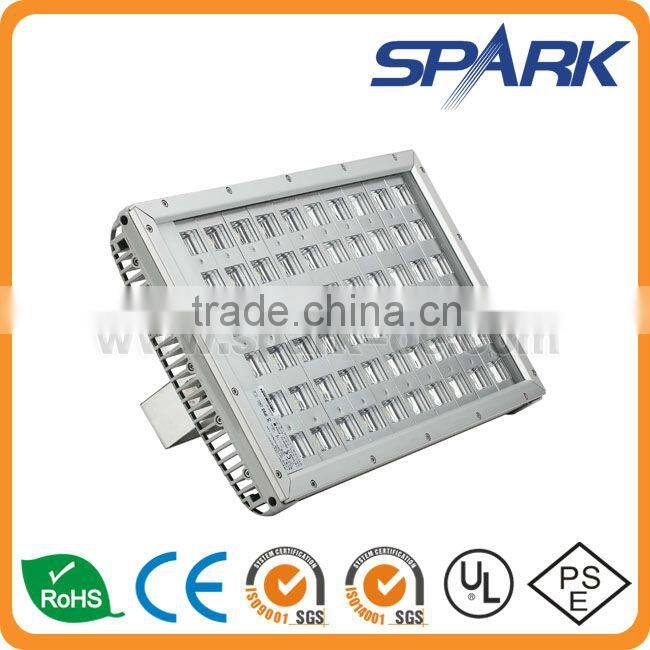

Spark Intelligent Control LED Tunnel Light 150W

FOB Price

Negotiable / Piece

2 Pieces(Min. Order)

Port Shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	CREE/Lumileds	Input Voltage(V)	100-277VAC
Lamp Power(W)	150	Lamp Luminous Flux(lm)	12000
Lamp Luminous Efficiency(lm/w)	80	Working Temperature(℃)	-40, 80
Working Lifetime(Hour)	50000	Lamp Body Material	Aluminum Alloy
IP Rating	IP65	Certification	CE, CQC, FCC, PSE, UL, VDE
Place of Origin	Guangdong, China	Brand Name	Spark LED Tunnel Light
Model Number	SPT-D150

Product Description

Spark Intelligent Control LED Tunnel Light 150W

Product Description:

1. Die casting aluminum alloy lamp housing with excellent heat dissipation; clear parts are high strength toughened glass; with a good performance of dust resistance, water resistance, and shock resistance.

2. Unique optical design & rectangular beam; every single LED matched with a reflection cup, which will properly control the light distribution, and ensure illumination and uniformity of light, meanwhile, eliminate LED glare.

3. Lamp and power driver are independently assembled with high overall reliability and convenient for maintenance.

Main Technology Index:

Model No.		SPT-D150
LED Light Source		CREE/Lumileds
LED Quantity		60 x 1 PCS LED
LED Luminous Efficiency		217 lm/700mA Cool white
Lamp Rated Total Power		150W ± 10%
Lamp Rated Luminous Efficiency		95 lm/w
LED Driver Current		700mA
Lamp Rated Total Luminous Flux		12,000 lm ± 10%
Average lllumination and Effective Area	3M Height	6m×7m ≥610LUX
	4M Height	8m×9.5m ≥342LUX
	5M Height	10m×12m ≥220LUX
	6M Height	12m×14m ≥152LUX
Color Rendering Index(CRI)		Ra>70
Power Efficiency		90%
Color Temperature(Color Temperture)		Cool white: 5000-5700K Pure white: 4000-4500K Warm white: 3000-3500K
Beam Angle		100°X90°
Input Voltage		100-277VAC
Frequency Range		47-63Hz
Power Factor(PF)		≥ 0.95
Total Harmonic Distortion(THD)		< 15%
Storage Temperature		-40°C--+80°C
Working Temperature		-40°C--+50°C ; 10%-90%RH
Junction Temperature(Tj)		85°C± 10%(Ta+25°C)
Light Body Material		Aluminum Alloy
Working Lifetime		> 50,000hrs
IP Rating		IP65
Net Weight		9.35kg
Product Size(mm)		489(L) x 295(W) x 213(H) (mm)
Package Size(mm)		559(L) x 365(W) x 231(H) (1 PC)
