Home > Products > Plastic Extruder > Conical Twin-screw Plastic Extruder/plastic extrusion machine

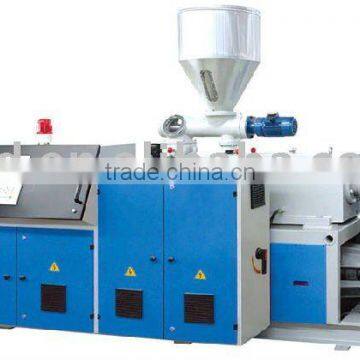

Conical Twin-screw Plastic Extruder/plastic extrusion machine
- 15 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Pipe | |
| Plastic Processed | Other, PP.PE.ABS. | Screw Design | Double-screw | |
| Place of Origin | Jiangsu, China | Brand Name | Friend | |
| Model Number | SJZ |
Product Description
Specifications
Conical Twin-screw Plastic Extruder1 It is mainly used in plasticizing,
2 extruding and forming PVC pipe,plate, sheet, film
Conical Twin-screw Plastic Extruder/plastic extrusion machine
Double-screw-stem plastic series extruders have advantages, such as forced extruding, high quality; wide suitable rang, long working life, small cutting rate speed, and not-easy decomposition of material, good plasticized material and others.
Main Technical Standards:
Item | Description | Unit | SJ65/132 | ||
1 | Output Capacity | Kg/h | Max.250 | ||
2 | Number of the Screws |
| 2 | ||
3 | Diameter of the Screw | mm | 65/132 | ||
4 | Rotating Direction of the Screws |
| Forth & Reverse | ||
5 | Rotation Speed of the Screw | r/min | 1-34.7 | ||
6 | Available Working Length of the Screws | mm | 1430 | ||
7 | Main Motor Power | Kw | 37 | ||
8 | Speed Adjusting Mode |
| Frequency conversion | ||
9 | Gear reducer |
| Rigid-gear surface low noise design | ||
10 | Heating Capacity of the Screw barrel | Kw | 19 ( casting-aluminium electric-thermal elements ) | ||
11 | Material of the Screws and the barrel |
| 38CrMoA1 | ||
12 | Nitriding Depth of the Screws and the barrel | mm | 0.5~0.7 | ||
13 | Nitriding rigidity of the Screws and the barrel | HRC | 50~55 | ||
14 | Cooling Mode of the Screw barrel |
| by air cooling | ||
15 | Temperature Adjustment of the Screws |
| By Screw-core Temperature Adjusting Device | ||
16 | Indicators |
|
| ||
17 | Temperature controllor |
| Brand: RKC or Omron | ||
18 | Element of Electric System ( contactors, buttons, switches ) |
| Brand: Seimens | ||
19 | Power of the Vacuum Pump | Kw | 2.2 | ||
20 | Max. Vacuum Degree | MPa | -0.093 | ||
21 | Cooling Water Consumption | L/min | 1~3 | ||
22 | Plastic Material Feeding Mode |
| By Fixed-quantity Screw Feeding Device | ||
23 | Rotation Speed of the Feeding Screw | R/min | 3.5~47 ( frequency conversion ) | ||
24 | Height of the Screw Axes | mm | 1000 | ||
25 | Figure Dimensions ( L×W×H ) | mm | 4235×1520×2450 | ||
26 | Weight | Kg | 4000 | ||
