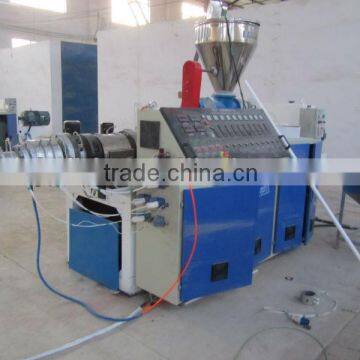

Plastic Extruder machine
USD $10,000 - $50,000
/ Set
1 Set(Min.Order)
- 15 Set / Sets per Month
- shnaghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Pipe | |
| Plastic Processed | PVC | Screw Design | Double-screw | |
| Place of Origin | Jiangsu, China | Brand Name | Friend | |
| Model Number | SJSZ |
Product Description
Specifications
Double screw Plastic Extruder1 It is mainly used in plasticizing,
2 extruding and forming PVC pipe,plate, sheet, film
Detailed introduction to Double-Screw Plastic Extruder:
This equipped with different kinds of molds and auxiliary machines, it can produce various PVC pipes,profiles,sheets,plates,bars and granulation.
Main Technical Standards:
| Item | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 |
| Specification(mm) | 55/110 | 65/132 | 80/156 | 92/188 |
| Diameter of screw(mm) | 2 | 2 | 2 | 2 |
| Number of screw(mm) | Screw rotation direction | |||
| Screw rotation speed(rpm) | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
| Effective length of screw(mm) | 1200 | 1440 | 1800 | 2500 |
| Power of Main engine(kw) | 22 | 37 | 55 | 90 |
| Barrel heating power(kw) | 18 | 24 | 36 | 86.8 |
| Production capacity(kg/h) | 80-140 | 250-300 | 320-450 | 500-600 |
| Center height(mm) | 1000 | 1200 | ||
| Net weight(kg) | 3500 | 4000 | 5000 | 10000 |
| Dimensions(mm) | 3620x1050x2157 | 4235x1520x2450 | 4750x1550x2460 | 6275x1550x2841 |
Plastic Extruder
- Screw diameter:72mm, Groove depth:10mm, Machine cylinder diameter:72mm, Master aspect ratio: L/D=48
- Screw component is 38CrMoA1A
- Components and spindle screw involute spline connection
- Main motor for AC motor, Screw speed is 50-500rpm
- As cast aluminum cylinder heater
- Main gear box reducer and torque distribution part into one, using the parallel three-axis design, Compact: Slow down, Torque distribution, Two output shaft bearings are used to import bearings.
- Hydraulic automatic changer
- Water circulation cooling system for the AC motor pumps
- Exhaust for the exchange of water ring vacuum pump motor
