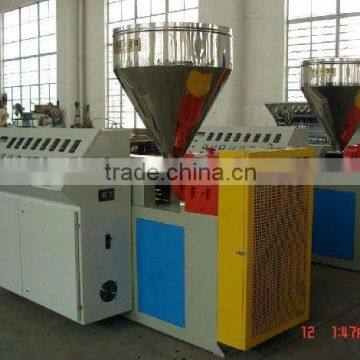

SJ Single-Screw Plastic Extruder Machine

FOB Price

USD $2,000 - $20,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Pipe
Plastic Processed	PVC	Screw Design	Double-screw
Place of Origin	Jiangsu, China	Brand Name	Friend Machinery
Model Number	SJ	Certification	CE

Product Description

Specifications

Single-screw plastic extruder
1.automatic temperature control
2.vacuum gas exhaustion
3.Good quanlity,lower price.

single-screw plastic extruder machine
1.CE certification
2.L/D:25-30:1
3.motor power:2.2-355kw
4.output:10-900kg/h

single-screw plastic extruder

SJ Series high-efficient single screw plastic extruder adopts screw with mature screw structure. In the light of different raw materials, different mixing elements are adopted to provide the extruder with high speed and high output and make the processed material mixed uniformly, radial temperature range small, and formed products little deformation. Equipped with relevant die head and auxiliary machine it could be used to process PE/PP/PVC/PA/PC/ABS pipes, profiles, sheets/boards, as well as granules.

We could provide extruders of different configurations according to different requirements of customers, for example, AC frequency conversion control, DC digital control or PLC control are for customer's option. The customer could choose different models of reduction box according to motor of different power. Also they could choose bearings made in China or made in foreign countries. We could provide extruder with CE mark on the customer' requirement

Main technical data:

Type	L/D Ratio	Motor Power (kW)	Heating Power (kW)	Screw Speed (r/min)	Output (kg/h)
SJ-20/25	25:1	2.2	2	10~100	10
SJ-25/25	25:1	3	2	10~100	16
SJ-30/25	25:1	3	4	10~100	20
SJ-45/28	28:1	11	9	10~100	55
SJ-55/28	28:1	15	12	8~80	60
SJ-65/25	25:1	22	14	10~100	80
SJ-65/30	30:1	45	18	10~120	110
SJ-90/30	30:1	90	38	9~90	240
SJ-90/34	34:1	110	40	9~90	280
SJ-120/25	25:1	90	60	9~90	350
SJ-120/30	30:1	110	72	9~90	400
SJ-150/25	25:1	132	76	8~80	450
SJ-150/30	30:1	160	96	8~80	500
SJ-170/25	25:1	200	112	8~80	680
SJ-170/30	30:1	250	120	8~80	760
SJ-200/25	25:1	315	140	7~70	800
SJ-200/30	30:1	355	150	7~70	900
