Inclination Alarm Sensor Slope Angle Warning Switch Switch/relay Output

4pcs/box,40pcs/ctn

Specifications

Inclination Alarm Sensor Slope Angle Warning Switch Switch/relay Output

SCA130T is a dual-axis tilt switch (dip switch, inclinometer switch,tilt switch)which is researched and produced by Shenzhen RION with high accuracy and high stability ,Its Measuring range is±90°, The switch action points and trigger delay time can be output and set through the RS232  serial communication port. It has ZERO setting function and response frequency adjustment function as well as optional Baud rate. It can be widely used in engineering mechanism field.

Features:

1:Two-axis inclinometer
2:Customers can self-set switch alarm values
3:ZERO setting function
4:DC 9~36V wide voltage power supply
5:Multi-Measuring range
6:Four channel switch signal and RS232 outpout
7:Full Metal Jacket,IP98 protection
8:Entirely industrial parts of appratus,stable and credible performance
9:Shockproof>20000g
10:Small volume,light weight
11:reverse polarity protection,over loading short circuit protection.
12:transistor drive,OC door output
13:small size(91*40*26mm)

Applications:
1:Chain Block,Hoist,Crane.
2:Aerial Platform Vehicle,lifter
3:Automatic orientation platform
4:Mining mechanism,oil-well drilling equipment
5:Security control,monitor,alarm

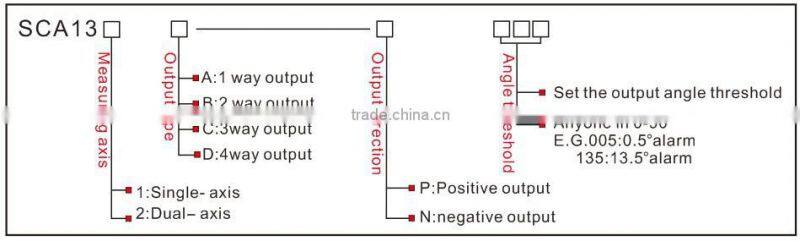

Ordering information

Technical Data

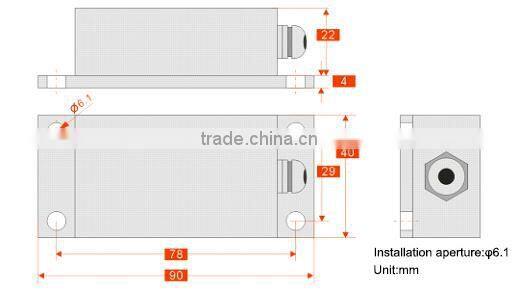

Dimension

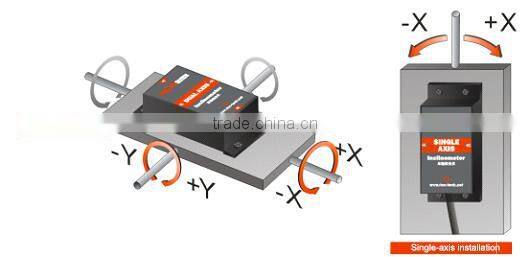

Measuring Directions&Fix

Shenzhen RION, as a positon sensor manufacturer and solution expert, attaches much importance to products reseach and develop which spend over 20% of annual profit. We have the most R&D personnel and best technology comparing with our peer to raise our up on the high level of sensor field. And we orientate ourself to market tightly and engage ourself into providing the most considerate and professional solution and service to customers. RION introduce advanced equipment, such as TEMP&HUMI chamber, salt spray corrosion test chamber, high precision automatic turntable, high precision marble checking platform, digital thermostat drying oven, electrostatic discharge tester and 360 degree mechanical turntable etc, and set up Environmental Testing Laboratory, Product Aging Chamber, 2D&3D Posture Calibration Room and Shake&Impact Test Room for R&D and factory test.

Beside owning excellent hardware, RION also developed 15 sets of software independently and keep developing, including multi-sensor monitor software, remote sensor monitor software, synchronous dynamic l tracking 3D presentation software, tilt switch early warning and debugging software and sensor serial port setting presentation software etc which could apply to XP, Win7, Win8, WinCE and Android system. RION, owning talent and diligent personnel, advanced technology and market-orientated strategy, engages itself in offerring you the most considerate and professional solution and service of position sensor.

You satisfaction is our ultimate destiny.

Certificates & Honor

Packaging: carton with sponge

We will ship your order within 7 business days after we receive the full payment.

If you choose ship by DHL/UPS/FEDEX/TNT,it will take 3-5 work days; If you choose EMS ,it will take 5-7 work days.

we are solution expert, we can make as your own design,shape,size,color and any other requirements.Any time when you received the goods,you will find them very personalized in the target market.

Being a professional manufacturer of tilt sensor, vibration sensor, compass etc, we will provide service and technical support before, in the middle of and after sales.

We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
