Product Details
| Place of Origin | Guangdong, China | Brand Name | RION | |
| Model Number | DMI420 | Usage | Magnetic Sensor | |
| Theory | Other, fluxgate | Output | Other, Digital Sensor, RS485 |
1pcs/box,10pcs/ctn
Product Description
Specifications
Angle Gauge Meter1, High accuracy
2, Fast response
3, Night version color screen
4, 1 year warranty

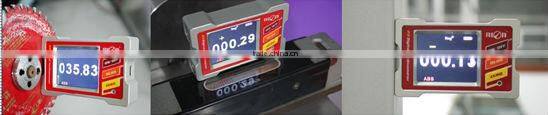

Protractor Finder Angle Gauge Meter Digital Display Bevel Box Inclinometer Magnetic Base
Features:
Accuracy:0.05° Repeatability:0.05° Resolution:0.01°
Measuring range:±180° Fast response Data hold on function
Absolute/Relative measurement can switch Both sides and bottom can measure
Double benchmark strong magnet installation Working Temperature : -20°~ +65°C
Auto-angle interleaved compensation function Auto temperature drift compensation
User can calibrate by himself Built-in recharge industry battaries
Night vision fours colors screen IP54 protection class
°/mm Dual units switch function 100g High anti-impact

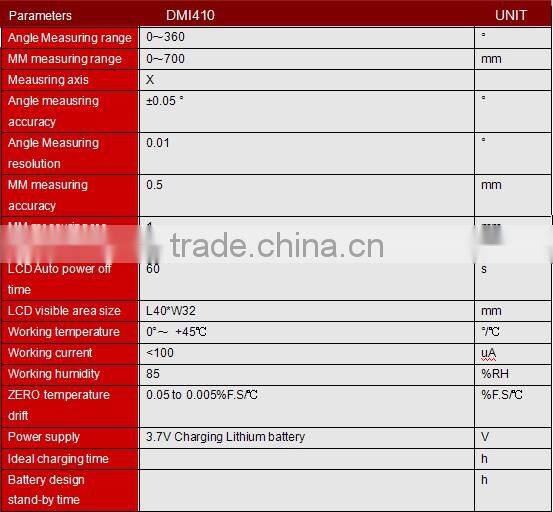

Technical data
Application :
Building construction Automobile four-wheel testing
Road slope Machinery installation Piping installation Industrial platform
Turntable testing Cloud deck angle detection Production jig Medical instruments
Ordering information :
Item No. | Desc. |
|
DMI410 | Standard single-axis digital display inclinometer/ Measuring range ±180°(Length 0~700mm/m) | |
SMI410 | External wired connection single axis inclinometer separated measuring/ Measuring range ±180°(Length0~700mm/m) | |
WMI410 | External wireless connection single axis inclinometer separated measuring/ Measuring range ±180°(Length 0~700mm/m) | |
DMI420 | Standard dual-axis digital display inclinometer/ Measuring range ±90°(Length0~700mm/m) | |
SMI420 | External wired connection dual-axis inclinometer separated measuring/ Measuring range ±90°( Length 0~700mm/m) | |
WMI420 | External wireless connection dual-axis inclinometer separated measuring/ Measuring range ±90°(Length 0~700mm/m) | |

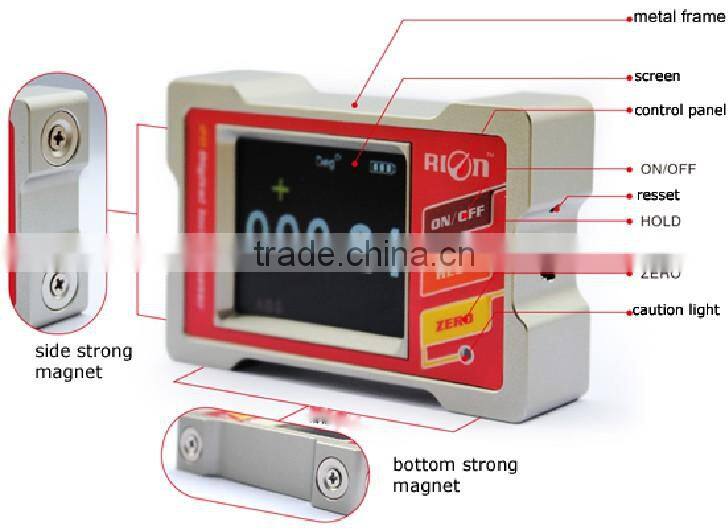

Product Functions:
