Reliable Inertial Surveying Unit 180 Deg Measuring Range
- Shenzhen
- Credit Card PayPal
You May Like
-
Longitude Latitude and Height 3D Acceleration and Angular Rate Navigation Sensor High Performance
-
High Precision Wireless Level Remote Level Control
-
Level Alarm Sensor Switch Tilt Industrial Safety
-
Navigation Low Cost Heading Sensor Fast Response
-
LCD Night Version Digital Tilt Logger Best Price
-
Industrial Inclination Control Dual Axes Wireless Tiltmeter With Air Plug
Product Details
| Place of Origin | Guangdong, China | Brand Name | RION | |
| Model Number | AH/VG620B |
1pcs/box
Product Description
Specifications
Inertial Surveying Unit1. High performance
2. Fully calibrated
3. Stable & reliable
4. Low power consumption
Reliable Inertial Surveying Unit 180 deg Measuring Range
Technical data
Terms | Value | Remark |
Heading(pending) | ||
Range Range | +-180 deg | |
Accuracy | <1 deg | With compass aiding or GPS aiding |
Resolution | 0.01 deg | |
Attitude | ||
Range: roll, pitch | +-180, +-90 deg | |
Accuracy | <0.3 deg | Helicopter steady flight or hovering |
Resolution | 0.01 deg | |
Angular rate | ||
Range: roll, pitch, yaw | +-150, +-300 deg/s | Standard configuration |
+-900 deg/s | High range configuration | |
Bias absolute error | <0.5 deg/s | Over working temperature, without Kalman filter |
<0.02 deg/s | Kalman filter stabilized | |
Bias stability in-run | 6 deg/hr | Typical, allan deviation |
Resolution | <0.01 deg/s | |
Angle random walk | 0.1deg/hr | Typical |
Noise density | 0.002deg/s hz | |
Acceleration | ||
Range: x,y,z(g) | +-12 g | +-4 for low range version |
Bias stability(/m/s2) | 4 x 10-4 | Typical, allan deviation |
Resolution(mg) | <1 mg | |
Noise density(mg/Hz) | 0.08 | |
Bandwidth | ||
Sensor bandwidth | 20Hz | With internal filtering |
Environment | ||
Shock survival in run | 750g at 1ms | |
Shock survival power off | ||
Vibration operational | 6g rms | 20Hz-20KHz, random |
Operating temperature | -20°C~85°C | -40°C~1055°C with reduced spec |
Enclosure level | IP66 compliant | |
Electrical | ||
Input voltage(DC V) | 11-13 | Surge clamping above 15.0v |
Size | 74 x 60 x 56mm | |
Weight | <400g | |
Connector | Micro-DB9 | |
Description

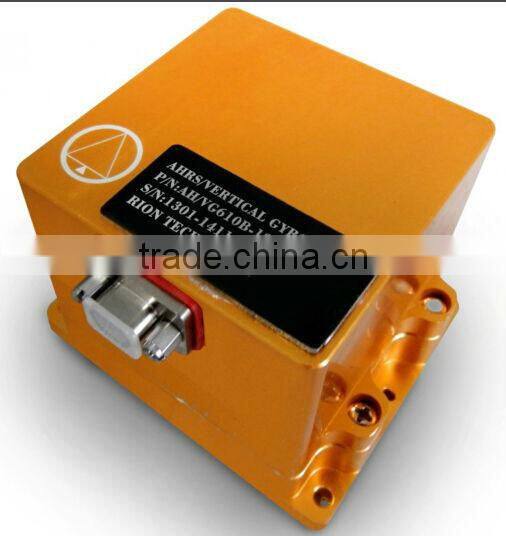

The AH/VG610B is a high reliable, vibration-rejecting state inertial meaurement unit. It consists of 3 vibration ring gyroscopes and 3 inertial damping accelerometers mounted orthogonally in each axis of space. Each device is factory calibrated over the working temperature range. The fusion of the sensors is performed with an extended Kalman filter to provide the potimal estimation of dynamic roll and pitch angle. The AH/VG610B is available in standard and high range sensor configurations.
The AH/VG610B is featured with a high performance vibration mechanism to provide excellent reliability under vibration and shock conditions.
The AH/VG610B can accept external electronic compass(module number TBD) to provide optimized heading angle. GPS aided version is also available upon request.

Features
- consistent performance under high vibration environment
- internal vibration isolation mechanism
- fully calibrated for offset, scale factor, cross-axis sensitivity and misalignment of each axis of sensors
- temperature compensated for improved bias and sensitivity stability
- double precision extended kalman filter running at 500 cycles per second with synchronous sampling rate at 128kSPS of each other
- data rate up of 250 packets per second. user-friendly RS232 digital interface
- low power consumption, typical 0.25A@12V
- complete against crossbow VG440
Application
- unmanned helicopters and light hilicopters
- UAV and AGV
- platform stabilization
- vessel applications
- inertial navigation systems

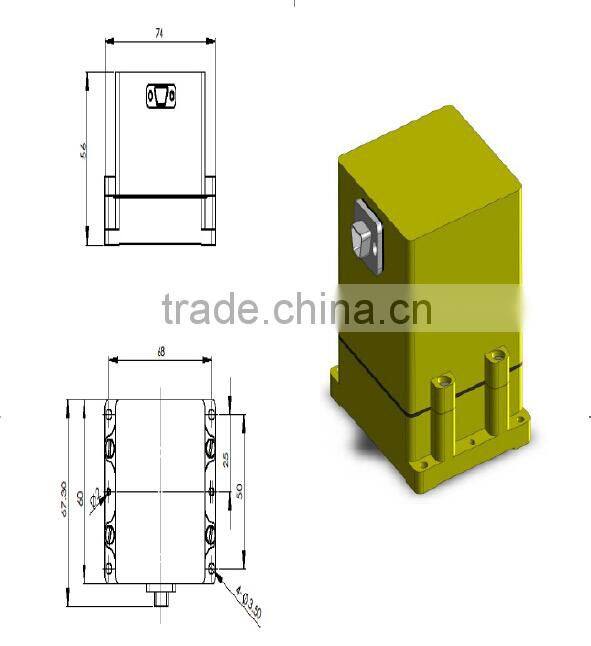

Dimension
