JG4-YZ100/JG4-YZ300 Series Laser Sensors, Laser Photoelectric Sensors, PNP/NPN, NO.NC, 12~24VDC Laser Sensor..
US$ 90 - 110
/ Piece
5 Pieces(Min. Order)
- Guangzhou Shenzhen
- Credit Card
You May Like
-
100mm Background Suppression Photoelectric Sensor and Spot Laser Sensor for Sales
-
JG3-S100N Laser Distance Sensor,detect Tiny Object,background Suppression
-
Laser Switch,small Light Spot Sensor,laser Light Source
-
Digital Laser Distance Sensor, Visible Light, Two Point Set
-
100mm Laser Sensor,high Power Laser Light Souce, Red Visible Light
-
CE JG3 Series 100mm Sensing Background Suppression Optical Small Spot Laser Sensor
Product Details
| Place of Origin | Hunan, China | Brand Name | F&C | |
| Model Number | JG4series | Usage | Position Sensor | |
| Theory | Optical Sensor | Output | Switching Transducer |
Product Description
Product Description
| Item | Model | Output | Sensing Range | Light Spot | Wiring |
| Diffuse Laser Sensors | JG4-YZ100N | NPN.NO | 100 mm | 1x10mm | Φ4×2M/3-wire M8 connector |
| JG4-YZ100N2 | NPN.NC | ||||
| JG4-YZ300N | NPN.NO | 300 mm | 1.5x40mm | ||
| JG4-YZ300N2 | NPN.NC |
| Model | Diffuse Laser Sensor | |
| JG4-YZ100N JG4-YZ100P | JG4-YZ300N JG4-YZ300P | |
| Detection distance | 100mm | 300mm |
| Light spot | 1x10mm | 1.5x40mm |
| Mini detection object | 1x10mm | 1.5x40mm |
| Light source | laser light source | |
| Operation voltage | DC 12~24V include 10%(P-P) | |
| Current consumption | 100mA max | |
| JEC/JIStype/JEC/JIS | ClassⅡ | |
| Response time | 0.5ms | |
| Differential | (two points of setting) within 20% auto-setting | |
| Detection&blind area | >=35mm | |
| Mechanical reliability | vibration:XYZ,5—50Hz 1hour free-faller:2m high,10 times | |
| Electrical reliability | Wiring protection/protection/short-circuit protection | |
| Mode of operation | Light-on/Dark-on, hold on button for above 10 Sec for switching. Default:Dark-on | |
| indicator: Red/output, Green/stable, Default:dark-on | ||
| Operating temperature | -20~+70℃(no freezing-in) | |
| Operating humidity | 35~85℃ RH | |
| Sensitivity adjustment | adjusted by button | |
| Output control | NPN / PNP 100mA max DC 24V | |
| Ambient light | 5000 lux (filament lamp) ; 20000lux (sunshine) | |
| Crust material | AL | |
| Wiring method | M8 connetor | |
| Weight | approx. 100g | |

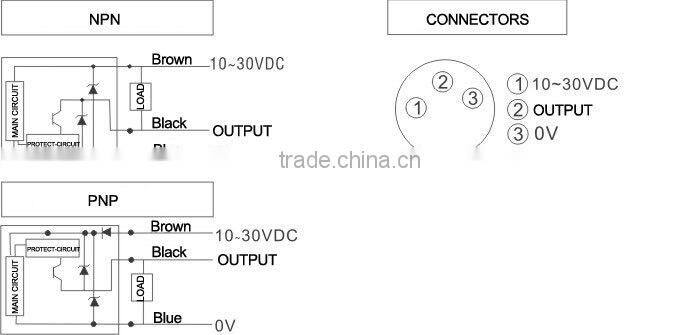

Diagram
