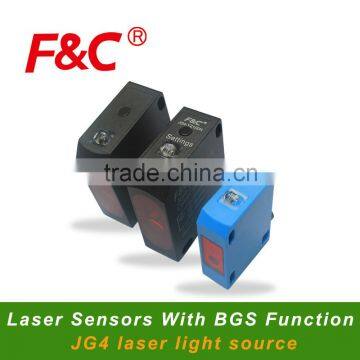

JG4-BGS100/300 series laser sensors, laser photoelectric sensors, With BGS function
US$ 80 - 100
/ Piece
5 Pieces(Min. Order)
- Guangzhou Shenzhen
- Credit Card
You May Like
-
JG4-YZ100/JG4-YZ300 series laser sensors, laser photoelectric sensors, PNP/NPN, NO.NC, 12~24VDC Laser Sensor..
-
100mm background suppression photoelectric sensor and spot laser sensor for sales
-
JG3-S100N laser distance sensor,detect tiny object,background suppression
-
laser switch,small light spot sensor,laser light source
-
Digital laser distance sensor, visible light, two point set
-
100mm laser sensor,high power laser light souce, red visible light
Product Details
| Place of Origin | Hunan, China | Brand Name | F&C | |
| Model Number | JG4-BGS series | Usage | Position Sensor | |
| Theory | Capacitance Sensor | Output | Switching Transducer |
Product Description
WITH BGS FUNCTIONS, NOT EFFECTED BY COLOR CHANGED OF SENSING OBJECTS
JG4S SERIES IS PLASTIC HOUSING, PLS NOTICE THAT.
Product Description
| Item | Model | Output | Sensing Range | Light Spot | Wiring |
| Reflective Laseer Sensors | JG4-BGS100N | NPN.NO.NC | 100 mm | Φ0.5mm | Φ4×2M/3-wire M8 connector |
| JG4-BGS300N | NPN.NO.NC | 300 mm | Φ1mm | ||
| JG4-BGS100P | PNP.NO.NC | 100 mm | Φ0.5mm | ||
| JG3-BGS300P | PNP.NO.NC | 300 mm | Φ1mm |
| Model | Reflective | |
| JG4-BGS100/JG4S-BGS100 | JG4-300N/JG4S-BGS300 | |
| Detection distance | 100mm | 300mm |
| Light spot | 1mm | 2mm |
| Mini detection object | 0.5mm | 1mm |
| Light source | laser light source | |
| Operation voltage | DC 12~24V include 10%(P-P) | |
| Current consumption | 100mA max | |
| JEC/JIStype/JEC/JIS | ClassⅡ | |
| Response time | 0.5ms | |
| Differential | (two points of setting) within 20% auto-setting | |
| Detection&blind area | >=35mm | |
| Mechanical reliability | vibration:XYZ,5—50Hz 1hour free-faller:2m high,10 times | |
| Electrical reliability | Wiring protection/protection/short-circuit protection | |
| Mode of operation | Light-on/Dark-on, hold on button for above 10 Sec for switching. Default:Dark-on | |
| indicator: Red/output, Green/stable, Default:dark-on | ||
| Operating temperature | -20~+70℃(no freezing-in) | |
| Operating humidity | 35~85℃ RH | |
| Sensitivity adjustment | adjusted by button | |
| Output control | NPN / PNP 100mA max DC 24V | |
| Ambient light | 5000 lux (filament lamp) ; 20000lux (sunshine) | |
| Crust material | AL | |
| Wiring method | M8 connetor | |
| Weight | approx. 100g | |
Diagram
