Solar Steel Structure Plant Mounting pv System
- Shanghai or Ningbo
- T/T PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Chuanyuan | |
| Model Number | CY-ZJ09 | Type | Other, solar roof racking system |
Product Description
| _________________________________________________________________________________________________________ |
_________________________________________________________________________________________________________
|
• solar home mental roof racking system •
• Features _________________________________________________

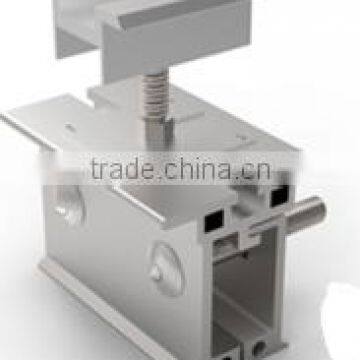

♦This racking system CY-ZJ09 is the innovative system designed for standing seam metal roofs. It has two ways of installation. One is penetraing(screw or double wood screw) , the other is non-penetrating(clamps). For the nonpenetrating system, it is also a no rail solution which can save the cost a lot. Besides, it is a water-proof solution that can protect the roof. The installation work of no-rail is sxtremely easy. 2 stpes complete the whole installation work. 1. Install the clamps. 2. fix the panel, so it very much save your installation time amd labor.
♦ Specifications: 1. Excellent design
2. Easy installation: 40% ~80% pre-assembled
3. Safety & reliability: IBC 2009,CBC 2010,ASCE/SEI 7-10,ANSI/ATSC 360-05,ACI 318-08
4. Custom-designed
5. High Quality & Competitive Price: The best price with guarantee |
• Information ______________________________________________
| Product model | CY-ZJ09 | |||||
| Application field | Pitched metal roof | |||||
| Material | Aluminum 6005-T5, ss 304 | |||||
| Arrangement of module | Horizontal | |||||
| Connecting components | Stainless steel bolt | |||||
| Wind resistance | 35m/s | |||||
| Snow load | 0.8KN/m² | |||||
| Servise life | 30years | |||||
| Warranty | 15 years | |||||
| Standard and certifications | ASCE/SEI 7-10 | |||||
• Working process ___________________________________________
Drawing ==> Mechanical Calculation ==> Testing ==> Installation Video
• Drawing&calculation&video _________________________________
• Why choose CY SOLAR? ___________________________________
Attention:
♦ Posistion: Located in CHINA with cheap labor & large raw material market.
♦ Guarantee: Supplied to project to be 396MWracking capacity.
♦ High Pre-assembly: 40% pre-assembly components, good for your time&labor saving!
♦ Flexible: Provide customized pruducts
♦ Professional: With 8 production lines, 10 enigneering developers.
♦ Rapid Transportation: One-hour to Shanghai port.
♦ High quality: Our products have 15-year warranty and 30-year of service life.
♦ Wide Application: Both ground&roof system, include the rail-less roof mounting structure.
• Details of structure ________________________________________
• Name: Rail • Material: Aluminum6005-T5,anodic oxidation(15μm)
• Name: Rail splice • Material: Aluminum 6005-T5 ,anodic oxidation(15μm)
• Name: L foot • Material: Q235, HDP(15μm)
• Name: Middle Clamp • Material: Aluminum 6005-T5, anodic oxidation(15μm)
• Name: End Clamp • Material: Aluminum 6005-T5, anodic oxidation(15μm)
• Name: Middle Clamp • Material: Aluminum 6005-T5, anodic oxidation(15μm)
• Name: End Clamp • Material: Aluminum 6005-T5, anodic oxidation(15μm)
CY Solar is focusing on meeting the huge demands from the public and improving advanced customized solar racking
solution.
Our obedience to the sprit of "Professional, Creative Service" to maintain the good relationship with our clients and
keep long term business relationship with domestic and overseas customers.
♥ Packaging Details: Inner package: Carton or kraft paper
Outer package: Wooden case or pallet
♥ Delivery Detail: 30 days after receiving 30% deposit
When requesting a quote, please offer the following necessary info:
1) What is your pv panels dimension?_____mm Length x_____mm Width x____mm Thickness.
2) How many panel are you going to mount? _______Pieces,each is _______Wp
3) Lowest height from the panel edge to the ground_____mm?
4) What is your planned pv assmebly block? ________(2*20 or 2*10 or 4*10 or others). in a row,
Horizontal or Vertival?
5) How is weather there, such as wind speed and snow load? ___m/s anit wind speed and____KN/m2
snow load
♦CY Solar is a leading enterprise with a comprehensive portfolio of products and services spanning the following areas: Solar Mounting, Solar Ground Mounting,solar mounting systems design, development, implementation, manufacturing, sales, and service. Our factory's chief areas of business involve: solar ground mounting system, flat and tile /iron roof mounts and the solar trackers. ♦We have ten experienced designers to design new solar mounting systems to meet customers' different needs . ♦We are located between the Shanghai City and Hangzhou city, a superior geographical conditions, easily accessible. ♦We have a young engineer team engaged in the development and designing with the advanced production equipment, inspection methods, strict quality control and rich management experience. |
♦Our price is much lower than others, because we are a factory , the source ,we produce these products directly . we have eight produce lines , that' s why our delivery time is short than others .The warranty is ten years and the service life can be reach 30years to fit the requirement of solar plant . ♦Our products meet the requirements of the international environmental law , Meet the development trend of the world's environmental ,our production concept is people-oriented . we have CE and ROHS . ♦With our factory, you take advantage of decisive advantages: Innovative ideas and professional project handling. ♦Nevertheless, we have maintained the flexibility of a medium-sized company - due to lean management and short device processes. Starting from small series up to big series, from simple profiles up to complex systems - let us impress you with our performance! ♦Company website: |
