New SDI Splitter 1x2 1080p to 1080i HD SDI Converter Video Extender Powerline Adapter

New SDI splitter 1x2  1080p to 1080i HD SDI Converter Video Extender powerline adapter

1.0 Introduction

This 1x2 SDI splitter distributes one SDI signal to 2 simultaneous SDI outputs. It supports full range of SDI

signal formats including 3G SDI, HDSDI, SDSDI with easy operation and high reliability. Using broadcast quality

processing technology, it delivers high definition, lossless and lag free distribution.

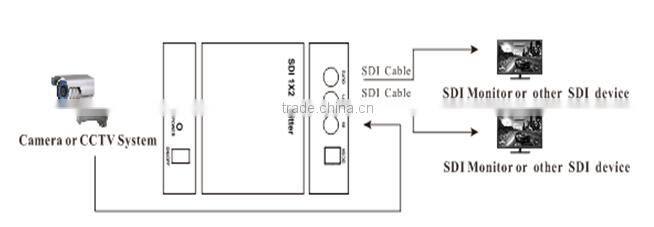

This splitter can be widely used in SDI broadcast room, no linear editing field, CCTV security system and

training showroom etc.

2.0 Features

* Features equalizer circuit on the input and outputs, allowing it to support long cable runs

* Support multiple video resolution:

  • SD 525i and 625i

  • HD 720p@24, 25, 30,50 and 60 Hz

  • HD 1080i@50, 60 Hz

  • HD 1080p@24, 25, 30, 50 and 60 Hz

* Support multiple color space:

  • RGB or YCbCr 4:4:4 sampled

  • YCbCr 4:2:2 or 4:2:0 sampled

* Support wide range of data rates:270Mbps~2.97Gbps.

* Support multiple deep color:8bit.10bit.12bit.

3.0 Specifications

4.0 Package & Shipping Contents

1) Main unit

2) DC 5V power supply

3) User Manual
