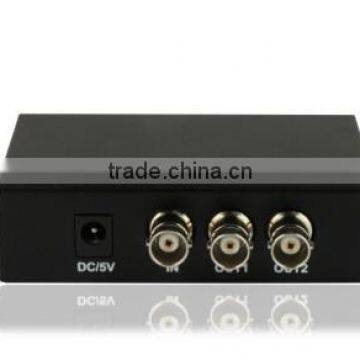

2 ways SDI output 1x2 SDI Splitter
- 100000 Piece / Pieces per Month
- Yantian
- Credit Card
You May Like
-
1x2 SDI Splitter one input and two input SDI Splitter
-
SDI 1x2 Splitter
-
Factory Price 2 Port SDI Splitter SDI Splitter 1 In 2 Out Splitter
-
Factory Price SDI Splitter 3G-SDI 2 Port SDI Splitter PET0102SD
-
Brand New SDI Splitter HD-SDI 2 Port SDI Splitter PET0102SD
-
Factory offer SDI Splitter HD-SDI 2- Port SDI Splitter 1x2 video signal splitter PET0102SD
Product Details
| Brand Name | Protech | Model Number | PET0102SD | |
| Place of Origin | Guangdong, China |
Product Description
2 ways SDI output 1x2 SDI Splitter
1 Introduction
2 Features
* Features equalizer circuit on the input and outputs, allowing it to support long cable runs
* Support multiple video resolution
• SD 525i and 625i
• HD 720p@24, 25, 30, 50 and 60 Hz
• HD 1080i@50, 60 Hz
• HD 1080p@24, 25, 30, 50 and 60 Hz
* Support multiple color space
• RGB or YCbCr 4:4:4 sampled
• YCbCr 4:2:2 or 4:2:0 sampled
* Support wide range of data rates 270Mbps~2.97Gbps.
3 Specifications
Input Connector | 1x SDI BNC Male |
Output Connector | 2x SDI BNC Male |
Supported Cable Length(using RG59 cable) | 3G(1080p 60Hz) Mode :Front 60M followed 30M OR Front 20M followed 50M |
HD(720P 60HZ)Mode:Front 100M followed 100M | |
Limited Warranty | 1Year Parts and Labor |
Operating Temperature | 0℃ to 70℃ |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10℃ to +80℃ |
Storage Humidity | 5% to 90% RH (no condensation) |
Power Supply | 5V DC@2A |
Power consumption(MAX) | 5W |
Splitter Unit Cert | FCC.CE |
Power Supply Cert | CE,FCC |
User Manual | English Version |
Note: Specifications are subject to change without notice.
4Package Contents
1) Main unit
2) Power adapter 5V@2A
3) User Manual
Certificates
Certifications: CE, FCC, HDMI Adopter, REACH, RoHS
