Home > Products > SDI Splitter > Transfer 1 SDI Signal to 4 4 PORTS SDI Splitter 1X4

Transfer 1 SDI Signal to 4 4 PORTS SDI Splitter 1X4

FOB Price

US$ 23.43 - 28.7 / Piece

50 Pieces(Min. Order)

Port Yantian
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Protech		Model Number	PET0104SD
Place of Origin	Guangdong, China

Product Description

1 X 4 SDI splitter 1 sdi input 4 sdi outoup HD sdi /3G sdi

1.0 Introduction

This is a 1x4 SDI splitter, which make it possible to transfer 1SDI signal to 4 monitors simultaneously.Up to four outputs could save you lots trouble of setting other signals when you want to enjoy other SDI programs.

2 Features

This product is specially designed with equalizer IC in its input and drive IC in its outputs.All of the input and outputs support long coaxial cable.

* Support multiple video resolution:

• SD 480i,576i and 625i

• HD 720p@24/25/30/ 50 / 60

• HD 1080i@50/60

•HD 1080p@24/25/30

•3G 1080p@50/60

* Support multiple color space:

• RGB or YCbCr 4:4:4 sampled

• YCbCr 4:2:2 or 4:2:0 sampled

* Support wide range data rates:270Mbps~2.97Gbps.

* Support multiple deep color:8bit,10bit,12bit.

3 Specifications

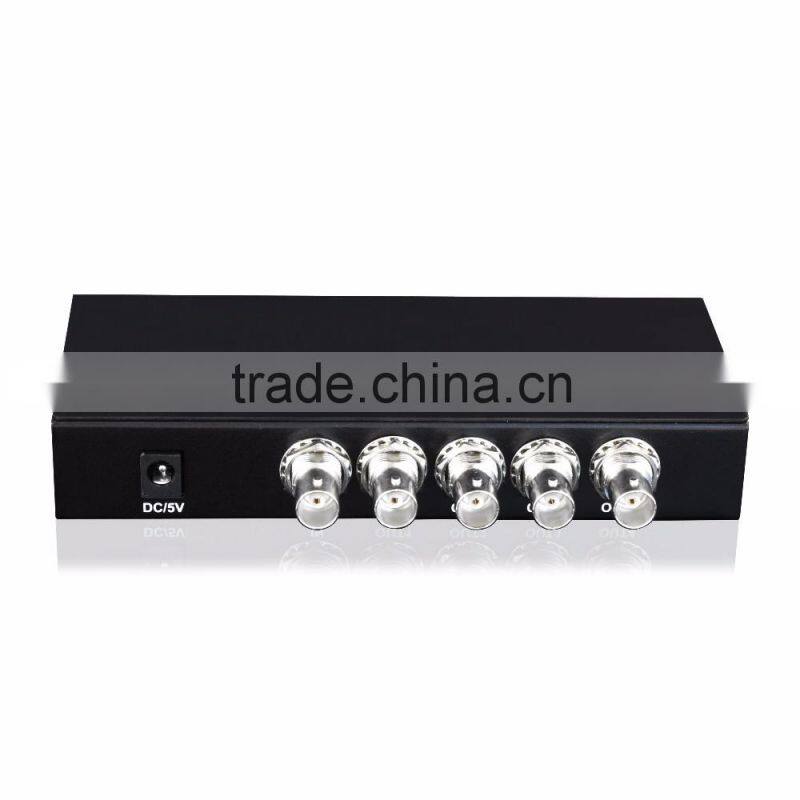

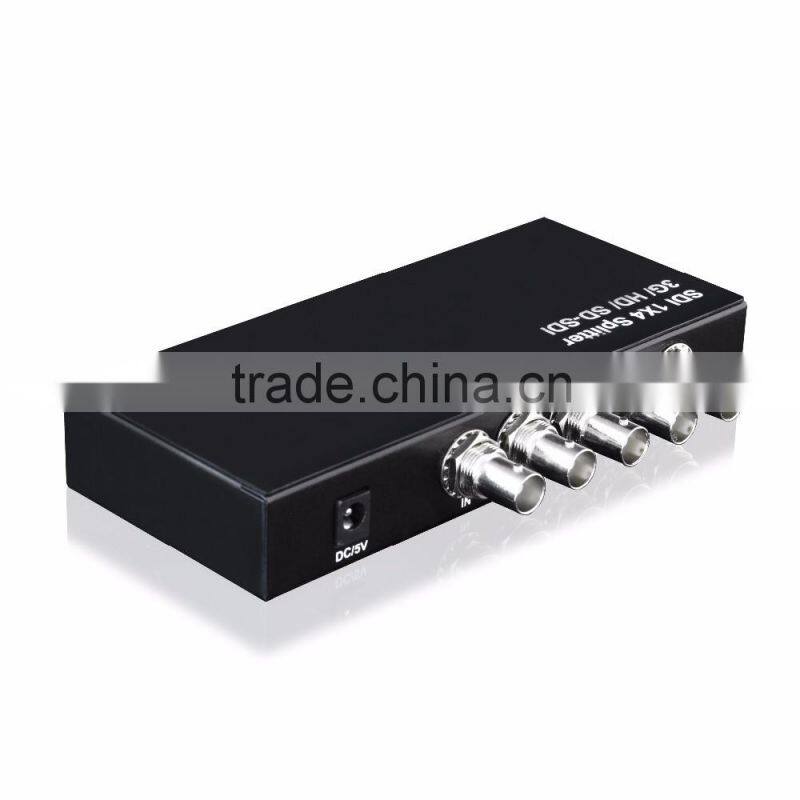

Input Connector	1x SDI BNC Male
Output Connector	4x SDI BNC Male
Supported Cable Length(BELDEN 1694A)	3G Mode: up to 100m
	HD Mode: up to 200m
	SD Mode: up to 400m
Limited Warranty	1Year Parts and Labor
Operating Temperature	0℃ to 70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90% RH (no condensation)
Power Supply	5V DC@2A
Power consumption(MAX)	1.2W
Splitter Unit Cert	FCC.CE, RoHS
Power Supply Cert	CE,FCC, RoHS
User Manual	English Version

Note: Specifications are subject to change without notice.

4.Package Contents

1) Main unit

2) Power adapter 5V@2A

3) User Manual

Certificates

Certifications: CE, FCC, HDMI Adopter, REACH, RoHS

About us

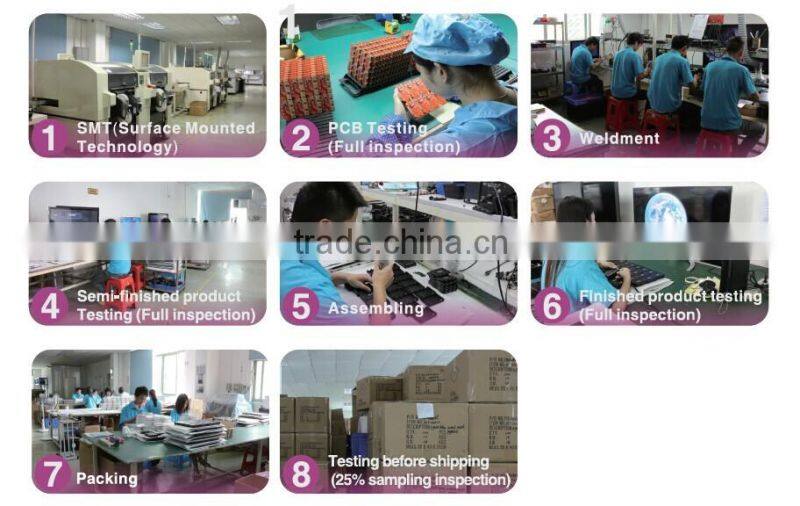

As a specialized independent supplier of HDMI products, Protech Electronics & Technology Limited focuses on high quality image process technology and application design,

owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection,experienced OEM, ODM production
