Product Details
| Brand Name | Protech | Model Number | PET0108SD | |
| Place of Origin | Guangdong, China |
Product Description

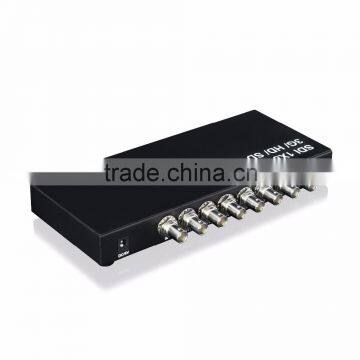

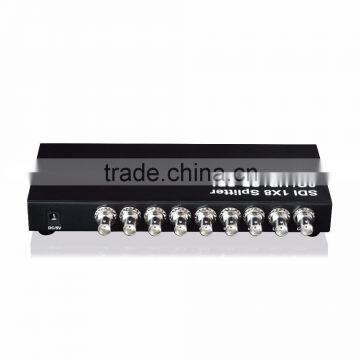

Premium SDI 1X8 Splitter SDI 1 input 8 outplut Supports 3G-SDI HD-SDI SD-SDI 100M Full HD SDI shopping made in China
1.0 Introduction
This is a 1x8 SDI splitter, which make it possible to transfer 1SDI signal to 8 monitors simultaneously.Up to eight outputs could save you lots trouble of setting other signals when you want to enjoy other SDI programs.
2.0 Features
This product is specially designed with equalizer IC in its input and drive IC in its outputs.All of the input and outputs support long coaxial cable.
* Support multiple video resolution:
• SD 480i,576i and 625i
• HD 720p@24/25/30/ 50 / 60
• HD 1080i@50/60
•HD 1080p@24/25/30
•3G 1080p@50/60
* Support multiple color space:
• RGB or YCbCr 4:4:4 sampled
• YCbCr 4:2:2 or 4:2:0 sampled
* Support wide range data rates:270Mbps~2.97Gbps.
* Support multiple deep color:8bit,10bit,12bit.
3.0 Specifications
Input Connector | 1x SDI BNC Male |
Output Connector | 8x SDI BNC Male |
Supported Cable Length (using RG59 cable) | 3G(1080p 60Hz) Mode:Front 60M followed 30M OR Front 20M followed 50M |
HD(720P 60HZ)Mode:Front 100M followed 100M | |
Limited Warranty | 1Year Parts and Labor |
Operating Temperature | 0C to 70C |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10C to +80C |
Storage Humidity | 5% to 90% RH (no condensation) |
Power Supply | 5V DC@2A |
Power consumption(MAX) | 5W |
Splitter Unit Cert | FCC.CE |
Power Supply Cert | CE,FCC |
User Manual | English Version |
4.0 Package & Shipping Contents
1) Main unit
2) DC 5V power supply
3) User Manual
5.0 Company Imformation
About us :
As a specialized independent supplier of HDMI products, Protech Electronics & Technology Limited focuses on high quality image process technology and application design, owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection, such as HDMI cable, switcher, splitter, matrix converter and extender.
In addition, Protech provides the prime quality & reasonable price for all our customers, and supports clients with high technology product development, experienced OEM, ODM production and highly effective global logistics. "To serve customers with good quality & price of the world competition" is our winning policy.
Office & Factory Outlook:
Flow of Production :
OEM & ODM:
Certification:
Exhibition:
You may interested in:
Pre-Sale: Respond Customer's inquiry in 12 hours, answering all reasonable questions raised, help make sales plans, recommend products for different market, help customer with custom-design packages etc.
On-Sale: after order is placed, we will keep close eyes on the production schedule to make sure the cargo will be delivered in time as promised. and cargo will be inspected for 4 times before delivery.
After-Sale: after the cargo is dispatched, we will help to track the goods and notity customer when cargo arrrived the destination. also, we will keep an eye on the cargo sales status. If the end user came across a problem, we can offer technical support/suggestions, etc.
Warranty: 1 years warranty for long-term business customers.
Back-up: product defect rate is almost 0%, but if a product needs repair, we can help to do that. if the products is unable to repair, we will send new one for replacement.
1.Q:Are you a factory or trading company?
A:We are a Professtional Manufacturer of HDMI Accessories for many years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in NO.6 Baofu Road, Shangmu Gubaolai Industrial Park, Ping Hu Town, Long Gang District,Shenzhen Guangdong, China , are warmly welcome to visit us!
3.Q:What is the material of your Product?
A:The material is ABS. We can also choose material as customers’ requirement.
4.Q:How can I get some samples?
A: We are honored to offer you samples.
5.Q:How does your factory do regarding quality control?
A:Quality is priority. Protech people always attach great importance to quality controlling from the very beginning to the very end.
