Home > Products > Round&Square Pipe Mill > HG50 ERW tube mill

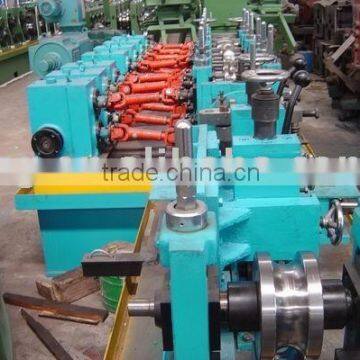

HG50 ERW tube mill
- 20 Set / Sets per Month
- Xingang
- T/T
You May Like
Product Details
| Condition | New | Type | Pipe Mill | |
| Pipe Material | Carbon Steel | Application | Drain Pipe | |
| Place of Origin | Hebei, China | Brand Name | ZTZG | |
| Model Number | HG50 | Certification | CE | |
| Warranty | 1 YEAR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Commodity: ERW tube mill
I. Brief introduction:
50mm welded pipe production line is designed to produce welded pipes of 20mm-50mm in OD and 0.8mm-2.0mm in wall thickness, as well as corresponding square and rectangle tube.
II. Basic Technical Information:
1.Specification of pipes
Pipe OD: 20mm-50mm Thickness: 0.8mm-3.0mm
Square tube: 20mm×20mm 40mm×40mm, Thickness: 0.8mm-2.0mm
Length: 6 -12m Length Tolerance: ±3mm
2.Raw Material:
Material: Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80
3. Tube mill
Production Speed : 20-80 m/min
Direction : left to right or right to left from operator`s side decided by customers.
III. The technical flow of the production line
Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming →HFwelding→Removing & outsied Bead →Cooling→Sizing→Cutting off→Conveying →Downloading → Packing →Warehousing
IV. Makeup of tube mill line
1. Double-reel Mechanical Uncoiler
2. Shear & Butt Welder
3. Cage Loop(Accumulator)
4. Tube mill
5. Solid State H.F. welder
6. NC Flying Saw
7. Output Rollway
8. Rollers
