HG355 Welded Steel Tube Equipment
- Xingang
- T/T
You May Like
Product Details
| Condition | New | Type | Other, Pipe Mill, welded steel tube equipment | |
| Pipe Material | Carbon Steel | Application | Drain Pipe | |
| Place of Origin | Hebei, China | Brand Name | ZTZG | |
| Model Number | HG355 | Certification | CE | |
| Warranty | 1 YEAR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Commodity: welded steel tube equipment
I. Brief introduce:
HG355mm welded pipe production line is designed to produce welded pipes of 114mm-535mm in OD and 3mm-16mm in wall thickness, as well as corresponding square and rectangle tube.
II. Basic Technical Information:
Specification | |
Round Pipe | O.D: Φ114mm-Φ355mm |
Thickness:3mm-16mm | |
Square&Rectangular pipe | 90*90mm-250*250mm |
Thickness: 3mm-14mm | |
Length | Length: 6 -12m Length Tolerance: ±3mm |
2.Raw Material:
Material: HR & CR Carbon steel coil(GB Q195∼Q345 / API∼X80)
3. Tube mill
Production Speed : 10-30 m/min
III. The technical flow of the production line

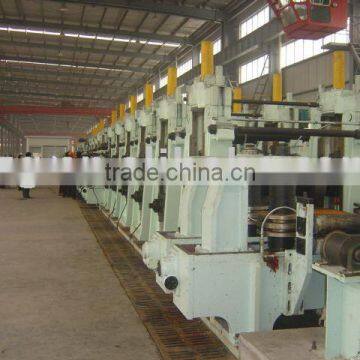

IV. Makeup of tube mill line
1. Double-reel Mechanical Uncoiler
2. Shear & Butt Welder
3. Cage Loop (Accumulator)
4. Tube mill
5. Solid State H.F. welder
6. NC Flying Saw
7. Output Roll way
8. Rollers
Remark:
To protect confidential information, Here only show basic parameters.
Detailed parameter will be known in the quotation list or negotiate with customer.
