welded steel pipe maker machinery/pipe machinery
- 20 Set / Sets per Month
- Xingang
- T/T
You May Like
Product Details
| Condition | New | Type | Pipe Mill | |
| Pipe Material | Carbon Steel | Application | Energy Supply Pipe | |
| Place of Origin | Hebei, China | Brand Name | ZTZG | |
| Model Number | HG140 | Certification | CE | |
| Warranty | 1 YEAR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

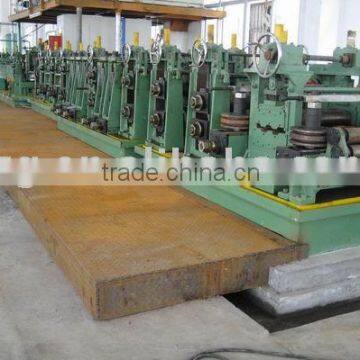

Commodity: HG140 Pipe Machinery
HGΦ140 high frequency longitudinally welded pipe making machine is used to manufacture welded steel pipes of Φ60mm-Φ140mm with 2mm-5mm of wall thickness, which also can produce profiled pipes within the limit of processing round pipes. After absorbing advanced pipe making technology from both abroad and domestic, our innovative designed production lines are both economical and practical.
Technical Flow:
Uncoiling - Flattening-Shearing&butt welding-Strip Accumulating-Forming-High-frequency induction welding-Bead and burr removing-Zinc patching -Cooling-Sizing Inside Removing-UltrasonicTesting-Cutting-Checking &Collecting-Binding-Weighing-Marking-Accessing Warehouse
Specifications
1.Product Specifications
I. Round pipe diameter range: 60-140mm
wall thickness :2mm-5.0mm
II. Square and rectangle tube : 50*50mm-130*130mm
wall thickness range 1.5-4.0mm
III .Tube and pipe length: 6--12m
2. Material Specifications:
Low carbon steel and low alloy steel: δb≤500Mpa
δs≤235Mpa
3 Line specification
production speed:0-60m/min
Line Direction: right to left(from operator' s side)
