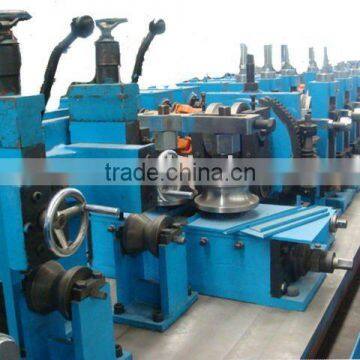

Pipe Mill Line For ERW20
- 20 Set / Sets per Month
- Tianjin China
- T/T
You May Like
Product Details
| Type | Pipe Production Line | Pipe Material | Carbon Steel | |
| Application | Energy Supply Pipe | Place of Origin | Hebei, China | |
| Brand Name | ZTZG | Model Number | ERW20 |
Product Description
Specifications
HG20 Pipe Mill LineTube range 8-20mm
Wall thickness 0.5-1.5mm,and also profile
Material:carbon steel and low alloy steel
Commodity: HG20 Pipe Mill Line
I. Brief introduction:
20mm welded pipe production line is designed to produce welded pipes of 8mm-20mm in OD and 0.5mm-1.5mm in wall thickness, as well as corresponding square and rectangle tube.
Basic Technical Information:
II. Specification of pipes
Pipe OD: 8mm-20mm Thickness: 0.5mm-1.5mm
Square & rectangle tube: 8mm×8mm -15mm×15mm, Thickness: 0.5mm-1.5mm
Length: 6 -12m Length Tolerance: ±3mm
2. Raw Material:
Material: Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80
Width: 36mm-120mm Thickness: 0.5mm-1.5mm
3. Tube mill:
Production Speed: 20-80 m/min
Direction: left to right or right to left from operator`s side decided by customers.
III. The technical flow of the production line
Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming → HFwelding→Removing outsied Bead →Cooling→Sizing→Cutting off→Conveying →Downloading → Packing →Warehousing
IV. Makeup of tube mill line
1. Double-reel Mechanical Uncoiler
2. Shear & Butt Welder
3. Cage Loop(Accumulator)
4. Tube mill
5. Solid State H.F. welder
6. NC Flying Saw
7. Output Rollway
8. Rollers
