Home > Products > Round&Square Pipe Mill > ERW76 Pipe Making Machine

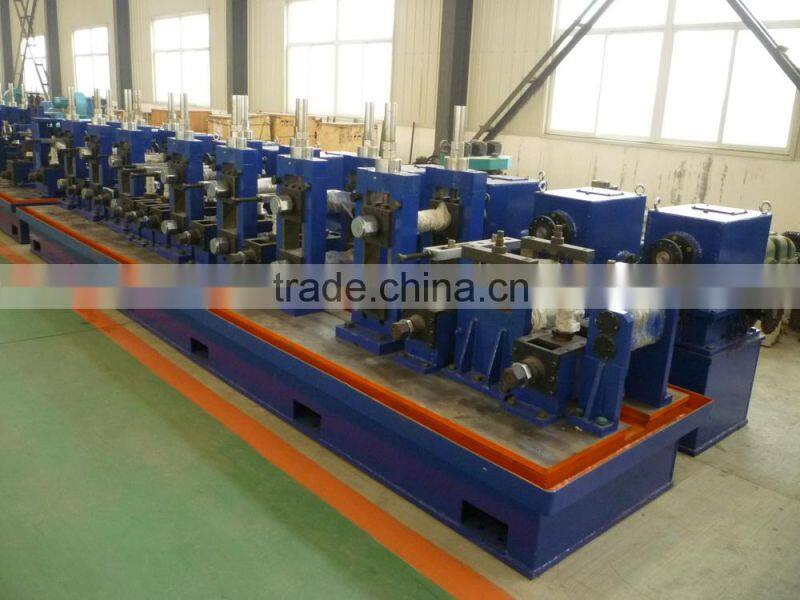

ERW76 Pipe Making Machine
- Tianjin
- T/T
You May Like
Product Details
| Condition | New | Type | Pipe Mill | |
| Pipe Material | Carbon Steel | Application | Other | |
| Place of Origin | Hebei, China | Brand Name | ZTZG | |
| Model Number | ERW76x4 | Power(W) | 500kw | |
| Dimension(L*W*H) | 70x5m | Weight | 25t | |
| Certification | ISO9001 | Warranty | 1 year after commissioning | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
ERW76 welded pipe making machine is used to manufacture welded steel pipes of Φ20mm-Φ76mm with 1.5mm-4.0mm of wall thickness, which also can produce profiled pipes within the limit of processing round pipes.
Specifications
Round pipe diameter range | 20-76mm |
wall thickness | 1.5mm-4.0mm |
Square and rectangle tube | 25*25mm-60*60mm |
wall thickness range | 1.5-3.0mm |
Tube and pipe length | 6--12m |
Material Specifications | Low carbon steel and low alloy steel: δb≤500Mpa δs≤235Mpa |
Strip width | 65 - 240 mm |
strip thickness | 1.5-4.0mm |
inner diameter | Φ480-600mm |
outer diameter | 900-1300mm |
Coil weight max | 2.5t |
production speed | 0-70m/min |
Line Power | 800kW |
Line Direction | right to left(from operator' s side) |
