ERW165 Pipe Making Machine
- Tianjin
- T/T
You May Like
Product Details
| Condition | New | Type | Pipe Mill | |
| Pipe Material | Carbon Steel | Application | Other | |
| Place of Origin | Hebei, China | Brand Name | ZTZG | |
| Model Number | ERW76x4 | Power(W) | 1800kw | |
| Dimension(L*W*H) | 90x10m | Weight | 54t | |
| Certification | ISO9001 | Warranty | 1 year after commissioning | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

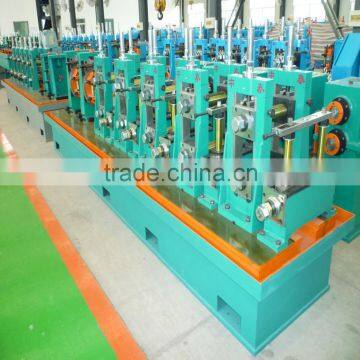

ERW165mm welded pipe production line is designed to produce welded pipes of 76mm-165mm in OD and 2.0mm-6.0mm in wall thickness, as well as corresponding square and rectangular tube. II. Basic Technical Information:
Specification of pipes
Pipe OD | 76mm-165mm |
Thickness | 2.0mm-6.0mm |
Square tube | 60mm×60mm 130mm×130mm |
Thickness | 2.0mm-5.0mm |
Length | 6 -12m |
Length Tolerance | ±3mm |
Material | Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80 |
Width | 65mm-520mm |
Thickness | 2.0-6.0mm |
Coil ID | 580-700mm |
Coil OD | Max 1800mm |
Coil Weight | 6t |
Production Speed | 10-50 m/min |
Direction | left to right or right to left from operator`s side decided by customers. |
Capacity | 30,000ton/year |
Electricity Input Power | 1800 kw |
Line Area | 90m(length) ×10m (width) |
Tube Bottom Passline (Above floor level) | 850 mm |
Weight | about 54t |
