Home > Products > ERW Square Pipe Mill > 32mm Pipe Making Machine
32mm Pipe Making Machine
- Xingang
- T/T
You May Like
Product Details
| Type | Pipe Production Line | Pipe Material | Carbon Steel | |
| Application | Drain Pipe | Place of Origin | Hebei, China | |
| Brand Name | ZTZG Zhongtai | Model Number | HG32 |
Product Description
Specifications
Commodity: pipe making machine1.Square tube: 10mm*10mm -25mm*25mm
2.Thickness: 0.6mm-1.5mm
Commodity: pipe making machine.
I. Brief introduction:
HG32 welded pipe making machine is designed to produce welded pipes of 10mm-32mm in OD and 0.6mm-2.0mm in wall thickness, as well as corresponding square and rectangle tube.
Its Basic Technical Information:
II. Specification of pipes
Pipe OD: 10mm-32mm Thickness: 0.6mm-2.0mm
Square tube: 10mm×10mm -25mm×25mm, Thickness: 0.6mm-1.5mm
Length: 6 -12m Length Tolerance: ±3mm
2. Raw Material:
Material: Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80
3. Tube mill:
Production Speed: 20-80 m/min
Direction:
left to right or right to left from operator`s side decided by customers.
III. The technical flow of the production line
Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming → HFwelding→Removing outsied Bead →Cooling→Sizing→Cutting off→Conveying →Downloading → Packing →Warehousing
IV. Makeup of tube mill line
1. Double-reel Mechanical Uncoiler
2. Shear & Butt Welder
3. Cage Loop(Accumulator)

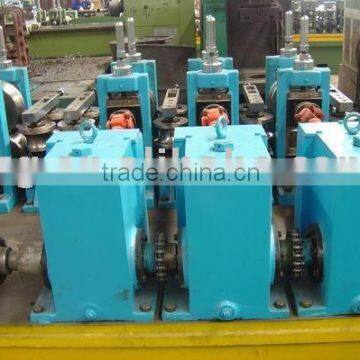

4. Tube mill
5. Solid State H.F. welder
6. NC Flying Saw
7. Output Rollway
8. Rollers
.
