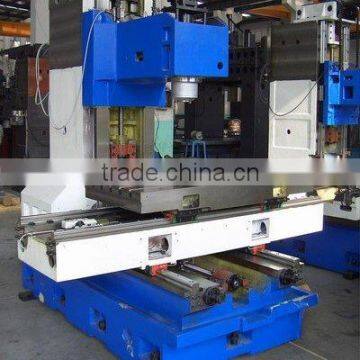

CNC machine frame VMC 850LB
- 100 Set / Sets per Month
- SHENZHEN CHINA
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Yunnan, China | |
| Brand Name | SMARTECH | Model Number | VMC 850LB | |
| Type | Vertical | CNC or Not | CNC | |
| Voltage | customized | Power(W) | customized | |
| Dimension(L*W*H) | 1900*180*2100 | Weight | 5000 kg | |
| Certification | ISO | Warranty | one year | |
| After-sales Service Provided | Overseas service center available |
Product Description
For more information please visit
SMARTECH CNC VMC FRAME
- MACHINE FEATURE:
1 High-class casting by resin sand and wood mould;
2 Top class imported ball screws sets and bearing ;
3 Imported spindle & tool clamping system ;
4 Imported drive connectors ;
5 Stainless steel telescopic protection on X/Y/Z axis ;
6 Central lubrication system ;
7 Coolant system ;
8 X&Y axes Linear slideways and Z axis box way type;
- OPTIONAL:
1 Spindle from Taiwan;
2 Direct drive structure for main motor with spindle ;
3 Central oil coolant for the spindle ;
4 Coolant through spindle ;
5 ATC: drum type, arm type or chain type ;
6 Outside guarding: standard or special made according to clients design
7 Chip conveyor
8 CNC pre-installed for clients: whole full ready package delivery according to clients design
- SPECS:
MODEL | VMC-850LB |
Table Size | 550 x 1000 |
Travel X | 800 |
Y | 500 |
Z | 500 |
Spindle to Column Slideway | 599 |
Spindle Nose to Table Surface | 160-660 |
T-Slot(No-size/distance) | 5-18/100 |
Spindle Taper/outside dia | BT40/150 |
Spindle Speed | 8000rpm |
X,Y axis Ball Screw Spec. | 45/16 |
Z axis Ball Screw Spec. | 45/12 |
X,Y & Z Motor Connection | Direct drive |
Main motors recommended | 7.5kw |
Drive motors recommended X/Y/Z | 16/16/16Nm |
Table Work Load | 600 Kg |
Net Weight | 5000kg |
For more information please visit
Machining Equipments Imported from Nicolas Correa Spain
A Bird's Eye View of Plant of Plant 2nd (Box-way VMC Plant)
For more information please visit
